Confused by lithium battery jargon? Worried about picking the wrong charger? I'll help you understand these power sources better.
Lithium batteries, like Li-ion, LiPo, and LFP, each need specific chargers. Match voltage, current, and charging profiles (like CC/CV) to ensure safety, prevent damage, and maximize battery life. It's crucial for performance.
Getting the right charger for a lithium battery isn't just a small detail. It's fundamental. I've seen many businesses, especially new importers, struggle with this. They buy a batch of products with built-in lithium batteries, then face issues because the supplied charger wasn't quite right. This can lead to returned goods, unhappy customers, and even safety concerns.
## What Are the Main Types of Lithium Batteries You'll Encounter?
Heard terms like Li-ion or LiPo but unsure what they mean for your products?

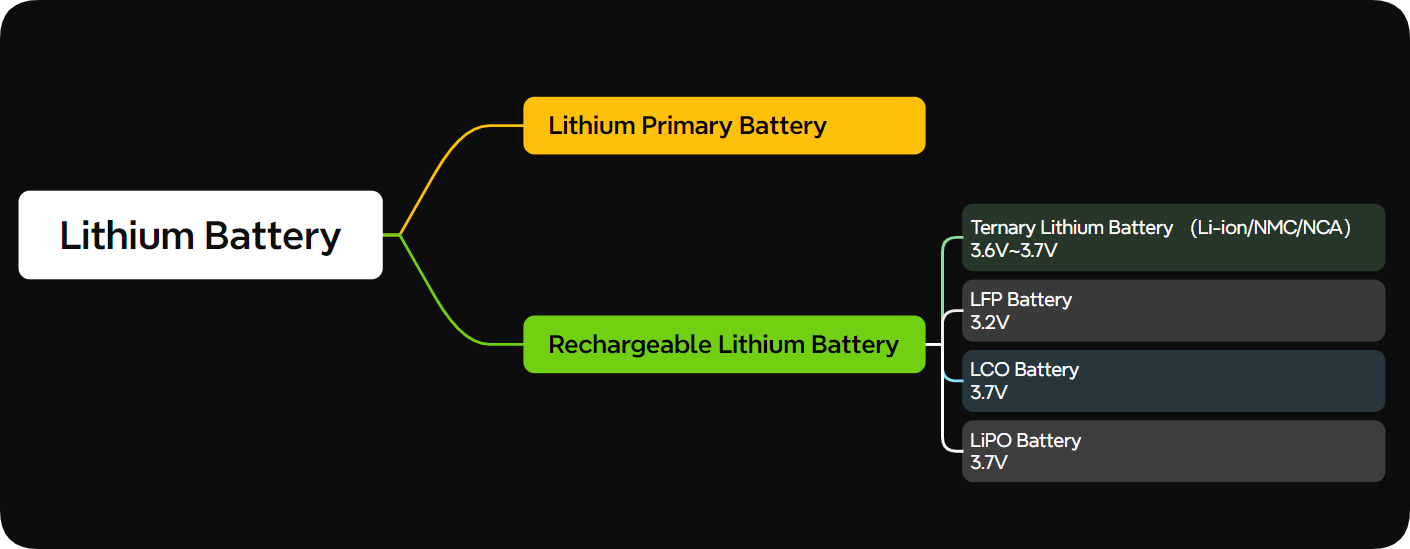

The most common rechargeable lithium batteries are Lithium-ion (Li-ion), Lithium Polymer (LiPo), Lithium Cobalt Oxide (LCO) and Lithium Iron Phosphate (LFP or LiFePO4). Each has unique characteristics affecting its use and charging needs.
At SuperDragon, we work with clients who use various lithium chemistries in their products, from consumer electronics to industrial equipment. Understanding these types is the first step to proper charging.
Lithium-ion (Li-ion) Batteries: The Popular Choice
Li-ion batteries are very common. You find them in laptops, power tools, and even some electric vehicles. They offer good energy density, meaning they pack a lot of power for their size and weight. Most Li-ion cells have a nominal voltage of 3.6V or 3.7V. It's important to know this because the charger must match. We ensure our charger delivers the correct, stable voltage.
Lithium Polymer (LiPo) Batteries: Flexible Power
LiPo batteries are a type of Li-ion battery. The main difference is the electrolyte. LiPo batteries use a polymer electrolyte instead of a liquid one. This allows them to be made in very thin or unusual shapes. You see them in smartphones, tablets, and drones. They share similar charging needs to other Li-ion cells, usually a nominal 3.7V per cell. However, they can be more sensitive to overcharging or physical damage. I always advise clients who are sourcing chargers for LiPo-powered devices to be extra careful about quality control on the charging circuit.
Lithium Iron Phosphate (LFP/LiFePO4) Batteries: Safety and Longevity
LFP batteries are another member of the lithium-ion family. Their nominal voltage is a bit lower, typically 3.2V per cell. What makes them stand out is their excellent cycle life (they can be charged and discharged many times) and better thermal stability, which means they are safer. They are great for applications where long life and safety are critical, like in some medical devices or energy storage systems. The chargers for LFP batteries need to be specifically designed for their lower voltage and charging profile.
Here's a quick comparison:
Understanding these differences helps purchasers from large corporations and distributors make informed decisions when specifying chargers for their products.
## How Do You Correctly Match a Charger to Your Lithium Battery Type?
Worried about damaging batteries with the wrong charger? This common fear can paralyze decision-making. Let's learn the simple rules for safe and effective charging.
To match a charger, verify its output voltage matches the battery's full charge voltage. Ensure current (amps) is suitable (check C-rate). Use chargers with the correct algorithm (CC/CV for Li-ion/LiPo, specific profiles for LFP).
Once you know your battery type, matching the charger is about looking at a few key specifications. It's like finding the right key for a lock. Using the wrong one can cause problems. I've spent 13 years in this industry, and I've seen firsthand how crucial this is for product longevity and safety.
Key Parameter 1: Voltage Matching is Crucial
This is the most important rule. The charger's output voltage must be correct for the battery type and its configuration (number of cells in series). For a single Li-ion or LiPo cell (nominal 3.7V), the charger needs to output around 4.2V for a full charge. For an LFP cell (nominal 3.2V), it's typically around 3.6V to 3.65V. If you have a battery pack with multiple cells in series, say three 3.7V Li-ion cells (an "3S" pack), the nominal voltage is 11.1V, and the full charge voltage will be around 12.6V. A charger designed for a 12V lead-acid battery will damage this Li-ion pack because its charging voltage and algorithm are different. Many of our clients in Germany and Italy, who import electronics, are very specific about voltage tolerances on the chargers they order from my factory.
Key Parameter 2: Current (Amperage) and C-Rate
The charging current, measured in Amperes (A) or milliamperes (mA), determines how fast the battery charges. A common guideline is the C-rate. If a battery has a capacity of 2000mAh (2Ah), charging it at 1C means using a 2A current. Charging at 0.5C would be 1A. Most Li-ion batteries are best charged at 0.5C to 1C. Charging too fast (too high current) can generate excess heat and reduce battery life. Charging too slowly isn't usually harmful but can be inconvenient. We often customize charger output currents based on the specific battery our B2B clients are using. For instance, a distributor of phone chargers might want a standard 1A or 2A output, while an industrial client might need a higher current for a larger battery pack.
Key Parameter 3: The Correct Charging Algorithm (CC/CV)
Most lithium-ion, LiPo, and LFP batteries require a specific charging algorithm called CC/CV. This stands for Constant Current / Constant Voltage.
1. Constant Current (CC): The charger supplies a steady current until the battery voltage reaches a set level (e.g., 4.2V for Li-ion).
2. Constant Voltage (CV): Once the battery reaches that voltage, the charger maintains that voltage, and the current gradually drops as the battery fills up.
Using a simple power supply that doesn't have this CC/CV logic can overcharge and damage lithium batteries. This is a common pain point for buyers sourcing low-cost chargers without understanding this. They might work for a while, but battery life suffers.
A client from Poland who manufactures portable lighting systems once came to us. They were using generic power adapters and experiencing high battery failure rates. We designed a custom charger with a proper CC/CV profile for their LFP batteries, and their issues dropped significantly. This is the kind of value we provide as a factory focusing on quality and customization.
Conclusion
Matching lithium batteries to the right charger is vital. Understand types, voltage, current, and CC/CV for safety and longevity. SuperDragon offers custom solutions.
If you need reliable, customized chargers for your lithium battery-powered products, contact to us [peter@cnsuperpowers.com] .We at SuperDragon can help.
