Can I use my lead acid charger on a lithium battery?
Difference between lead acid and lithium ion chargers, Why won't my lithium battery work with a car charger?
Is a dedicated lithium charger necessary?
No, lead acid and lithium battery chargers are NOT interchangeable. Using the wrong charger risks battery damage, fire hazards, or catastrophic failure due to fundamental differences in chemistry, charging algorithms, and safety requirements. Dedicated chargers exist because lead acid and lithium batteries demand fundamentally different charging "personalities" for performance and safety.
The Core Differences Explained:
1️⃣ Chemistry Dictates Charging Logic
Lead Acid (Pb): Relies on reversible lead sulfate/acid reactions. Chargers use Constant Current (CC) only, pushing high currents until voltage peaks (~14.4-14.8V for 12V). Simpler, bulk-focused.
Lithium (Li-ion/LiFePO4): Depends on lithium-ion movement between anode/cathode. Chargers use CC-CV (Constant Current-Constant Voltage): Fast CC phase (e.g., 0.5C-1C) until ~80% capacity, then precision CV taper (~13.8-14.6V for 12V LiFePO4) to avoid cell stress. Requires micro-processor control.
2️⃣ Charging Characteristics: Brute Force vs. Precision
| Feature | Lead Acid Charger | Lithium Charger |
| Algorithm | Single-stage (CC) | Multi-stage (CC-CV + balancing) |
| Speed | Slower (risk of gassing if overcharged | Faster, optimized to 100% without stress |
| Efficiency | Lower (more heat loss) | Higher (90%+ typical) |
| Sensitivity | Tolerant of voltage fluctuations | Requires precise voltage control |
3️⃣ Safety Systems: Basic vs. Mission-Critical
Lead Acid:Basic over-voltage cut-off and thermal protection. Tolerates minor overcharging (causes water loss/gassing). No cell balancing.
Lithium:Mandatory multi-layer protection:
BMS Integration: Communicates with charger (temperature, voltage per cell).
Critical Safeguards: Over-voltage, under-voltage, over-current, short-circuit, cell-balancing, and strict temperature monitoring.
Fail-Safe Design: Chargers halt instantly on anomalies. Using a lead acid charger bypasses these vital layers.
4️⃣ Application Domains: Where Each Reigns
Lead Acid Chargers Dominate In:

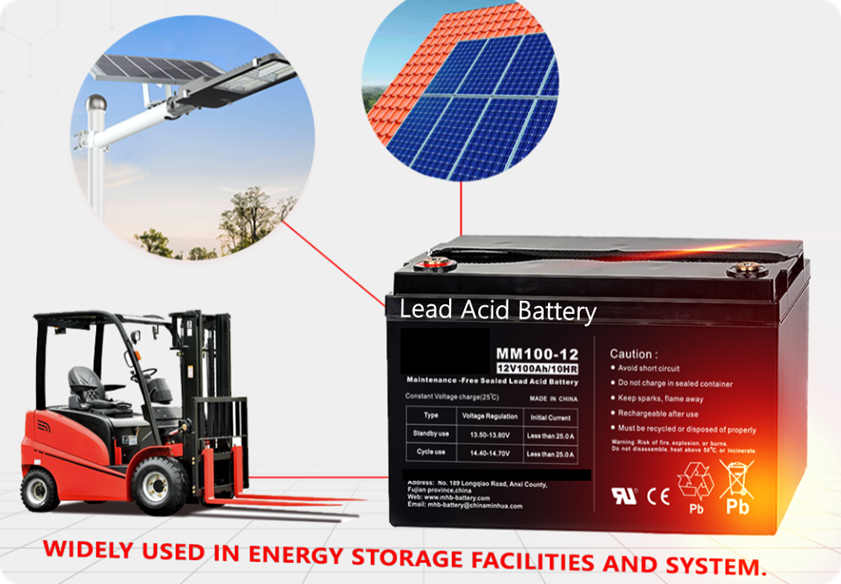

Automotive jump starters, Traditional UPS/backup systems, Golf carts, Marine trolling motors, Industrial floor scrubbers (cost-driven, high bulk power needs).
Lithium Chargers Are Essential For:

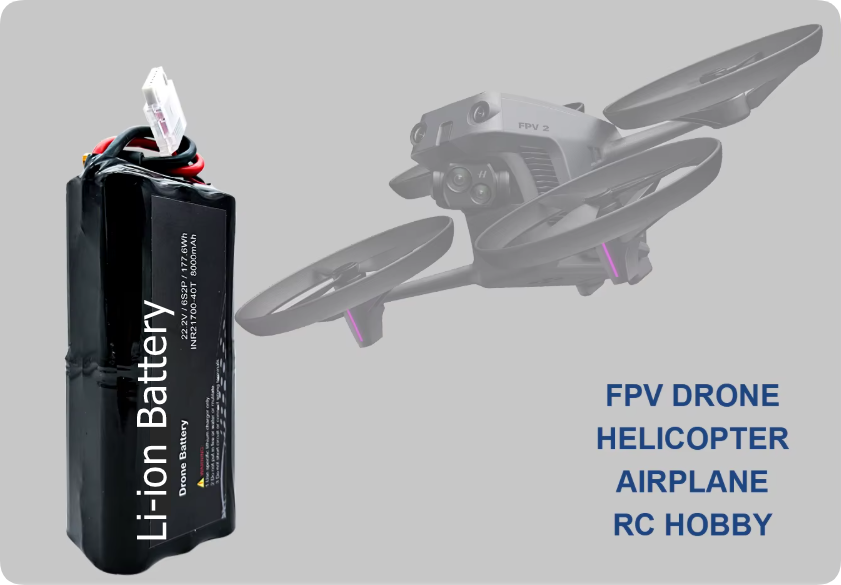

EVs/E-bikes/E-scooters, Solar storage (LiFePO4), Portable power stations, Drones, High-end consumer electronics, Modern RV/Campervan systems.
Why the Charger Matters More Than You Think
> Chemistry Isn't Forgiving: Forcing lead acid's "dumb" CC charge onto lithium causes plating (reducing lifespan) or thermal runaway (fire/explosion risk).
> Voltage Mismatch is Critical: A 12V lead acid charger targets ~14.4V. A 12V LiFePO4 battery needs ~14.2-14.6V *max* during CV phase – slight over-voltage causes permanent damage.
> Balancing is Non-Negotiable: Lithium packs require cell balancing (handled by the charger/BMS) to prevent weak cells from overcharging/over-discharging. Lead acid chargers ignore this.
Conclusion: Safety & Performance are Non-Negotiable
Never use a lead acid charger for lithium batteries. The differences are not merely technical nuances – they are critical safety and operational imperatives driven by electrochemistry.

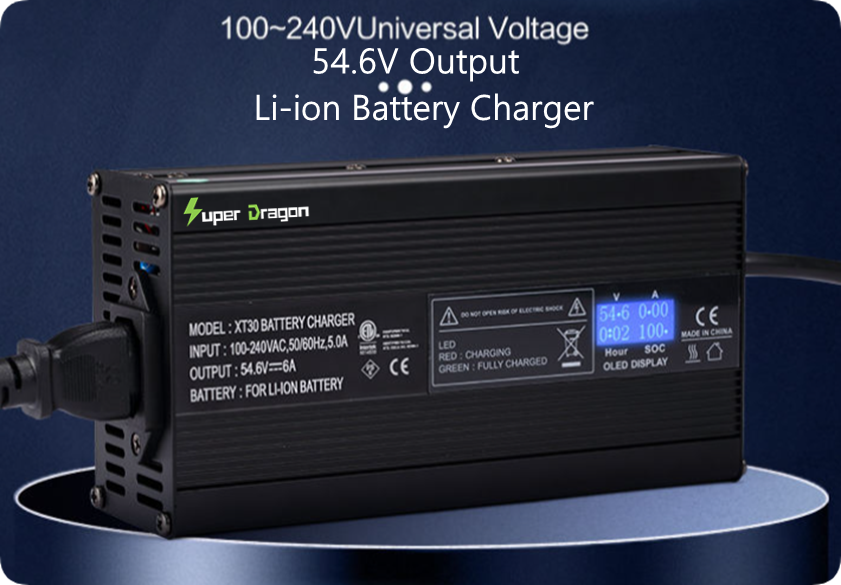

Lithium batteries demand "intelligent" chargers with precision CC-CV profiling, integrated BMS communication, and multi-fault protection.
(BMS communication enables lithium batteries to share real-time data about themselves with other devices in an off-grid or backup power system. )
Lead acid chargers lack these capabilities, posing severe risks. Invest in the correct, chemistry-specific charger. It protects your battery investment, ensures peak performance, and – most critically – safeguards people and property. Using the right charger isn't optional; it's the foundation of safe battery operation.
Lead acid chargers = simple, voltage-driven "bulk fillers."
Lithium chargers = smart, multi-stage, safety-critical systems.
Swapping them risks failure or fire. Always match the charger to the battery chemistry.
