Confused about power adapter standards? Using the wrong type for your equipment can lead to serious safety issues or compliance failures. I'll clarify the key distinctions.
Medical grade power adapters (IEC 60601-1) have much stricter safety requirements, lower leakage currents, and higher insulation levels than I.T.E. (Information Technology Equipment) grade adapters (IEC 62368-1), crucial for patient safety.

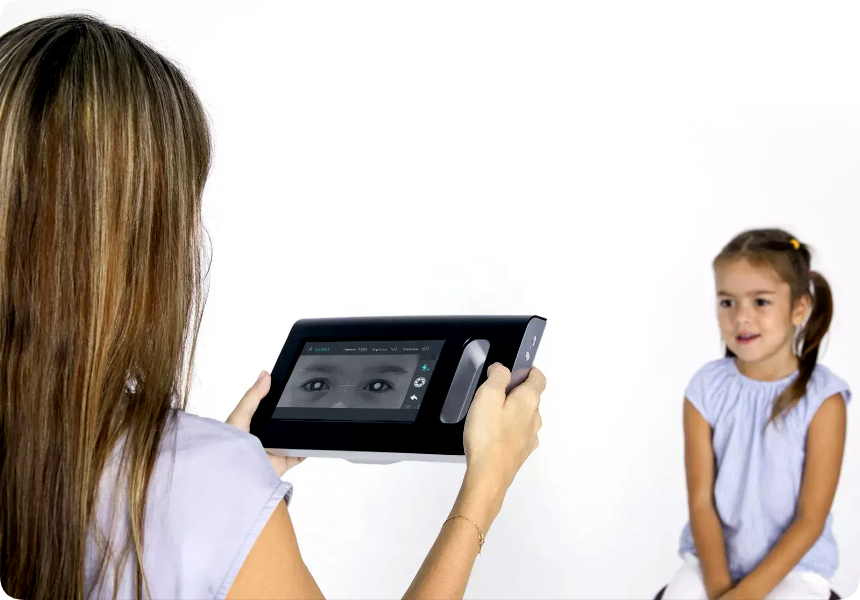

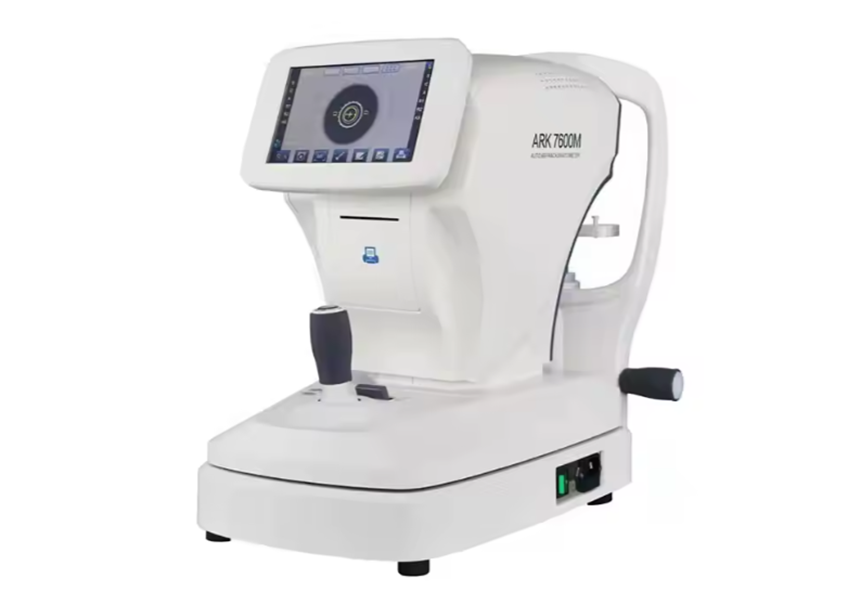

Understanding the difference between a medical grade power supply and an I.T.E. grade one is not just a technicality; it's a critical safety and compliance issue. As a factory owner with 13 years in this industry, I've seen clients grapple with this. For instance, a purchaser for a new medical device startup might be tempted by the lower cost of an I.T.E. adapter, without fully realizing the implications. We have a customer whose company designs and manufactures autorefractor. They purchased many power adapters in advance, but they did not really meet the IEC 60601 standard. As a result, the results of sending the power adapters to the laboratory for testing were all too high in radiation, and they also increased the high testing costs due to repeated delivery. This distinction impacts product safety, reliability, and your ability to sell into certain markets. So, let's dive into what sets them apart.
What Makes a Power Adapter "Medical Grade"?
Heard the term "medical grade" but unsure what it truly means for a power supply? This lack of clarity can lead to non-compliant products and patient risk.
A "medical grade" power adapter meets the stringent IEC 60601-1 safety standard, featuring significantly lower leakage currents, higher insulation (MOPP/MOOP), and robust risk management to protect patients and operators.
The primary standard governing these is IEC 60601-1. This isn't just a suggestion; it's a requirement for medical electrical equipment in most parts of the world, including key markets like the EU (CE marking involving EN 60601-1) and North America (UL/CSA 60601-1).
Key Features of Medical Grade (IEC 60601-1) Power Adapters:
Low Leakage Current:This is paramount. Leakage current is unintended current that can flow from the equipment to the patient or operator. Medical standards set very low limits for this, especially for parts that may come into contact with a patient. These limits are much tighter than for I.T.E. equipment. For example, patient leakage current limits are typically in the microampere (µA) range.
* Means of Protection (MOP): IEC 60601-1 defines different levels of protection:
MOOP (Means of Operator Protection):Protects the equipment operator.
MOPP (Means of Patient Protection):Offers a higher level of protection for the patient, who might be more vulnerable (e.g., unconscious, or with compromised skin integrity). Power supplies for devices with "applied parts" (parts that intentionally contact the patient) usually need 2 x MOPP. This involves greater insulation, creepage, and clearance distances.
* Insulation and Dielectric Strength:Medical power supplies require higher levels of electrical insulation between the AC input, the DC output, and earth connections to prevent electric shock. This translates to specific minimum creepage distances (along surfaces) and clearance distances (through air).
* Risk Management (ISO 14971): Manufacturers of medical devices, including their power supplies, must implement a comprehensive risk management process according to ISO 14971. This involves identifying, analyzing, and controlling potential hazards throughout the product lifecycle.
At SuperDragon, when we undertake a project for a medical application, perhaps for a client in Germany or Italy specializing in diagnostic tools, these requirements are at the forefront of our design and manufacturing process. The component selection, PCB layout, and testing are all meticulously managed to meet these stringent standards.
| Feature | IEC 60601-1 (Medical) Guideline |
| Primary Standard | IEC 60601-1 (plus regional variations like EN, UL) |
| Leakage Current Limits | Very Low (e.g., Patient <100µA NC, <500µA SFC) |
| Means of Protection | MOOP & MOPP (often 2xMOPP for patient contact) |
| Insulation Requirements | High (e.g., 4000VAC for 2xMOPP input-output) |
| Risk Management File | Required (ISO 14971) |
| Creepage/Clearance | Increased distances for safety |
How Do I.T.E. Power Adapters Differ from Medical Ones?
Are I.T.E. power supplies unsafe? Not at all, but their safety focus is different.
I.T.E. power adapters (IEC 62368-1 or older IEC 60950-1) are safe for IT and AV equipment but have higher allowable leakage currents and less stringent insulation requirements compared to medical grade adapters.
I.T.E. stands for Information Technology Equipment. These are the power adapters you typically find with your computers, monitors, routers, and other office or consumer electronics. The main safety standard for these products is IEC 62368-1 (Audio/video, information and communication technology equipment).
Key Characteristics of I.T.E. (IEC 62368-1 / IEC 60950-1) Power Adapters:
Leakage Current:While still controlled for safety, the allowable leakage current limits for I.T.E. power supplies are generally higher than for medical grade. Touch current might be limited to 0.25mA for Class I portable equipment under normal conditions, which is significantly more than what's allowed for patient-connected medical devices.
Insulation Levels: The insulation requirements (dielectric strength, creepage, and clearance distances) are robust for protecting users from electric shock in an I.T.E. environment but are typically less demanding than the 2xMOPP requirements in many medical applications.
Focus on Operator Safety:The primary goal is to protect the user of the IT or AV equipment from electrical hazards, fire, and mechanical dangers. Patient safety, especially for vulnerable individuals, is not the direct design consideration.
Hazard-Based Safety Engineering (IEC 62368-1): The newer IEC 62368-1 standard takes a more proactive approach, identifying potential energy sources (electrical, thermal, chemical, mechanical, radiation) and requiring safeguards to prevent them from causing pain or injury to users.
| Feature | I.T.E. (IEC 62368-1 / 60950-1) Guideline | Medical (IEC 60601-1) Guideline |
| Primary Standard | IEC 62368-1 (or IEC 60950-1) | IEC 60601-1 |
| Leakage Current Limits | Higher (e.g., <0.25mA to <3.5mA typical) | Very Low (e.g., Patient <100µA NC) |
| Means of Protection | Focus on operator safety, basic/supplementary | MOOP & MOPP (higher patient safety focus) |
| Insulation Requirements | Standard for I.T.E. | High (often 2xMOPP for patient contact) |
| Risk Management File | Good practice, less formally mandated | Required (ISO 14971) |
The key takeaway is that "safe" is relative to the application. An I.T.E. adapter is safe for your laptop but not for a heart monitor.
Can You Use an I.T.E. Power Adapter for a Medical Device?
Tempted to use a cheaper I.T.E. power supply in a medical device to save costs? This decision carries significant risks and compliance headaches you must avoid.
Generally, no. Using an I.T.E. power adapter for a medical device is highly risky and non-compliant. It compromises patient safety due to inadequate insulation and higher leakage currents, violating medical standards.
Why It's a Bad Idea:
1. Patient Safety Risk;
2. Regulatory Non-Compliance;
3. Liability.
There might be extremely limited, niche scenarios where an I.T.E. supply could be considered for equipment used within a medical facility but far removed from any patient contact and not part of a medical electrical system (e.g., an office PC in a doctor's administrative office). For any device that could be considered "medical electrical equipment," especially those near patients, the answer is clear: use a medical grade power supply. I always advise my clients, whether they are experienced purchasers from large corporations or newer buyers, to err on the side of caution when it comes to medical applications. The potential cost of failure far outweighs any initial savings.
How Does SuperDragon Ensure Compliance for Different Power Adapter Types?
Sourcing compliant power adapters can feel like navigating a minefield of standards. How can you be sure you're getting the right, certified product for your needs?
SuperDragon designs and manufactures power adapters to meet specific standards: IEC 60601-1 for medical applications and IEC 62368-1 for I.T.E., ensuring clients receive compliant and reliable power solutions.
At SuperDragon, our 13 years of experience as a power supply factory means we have a deep understanding of these differing requirements. Whether a client needs a batch of high-volume I.T.E. chargers for phone accessories or a specialized, low-volume medical grade power supply for a diagnostic device, our process is geared towards compliance and quality.
Our Approach to Compliance:
1. Clear Specification.
2. Design for Compliance.
3. In-House and Third-Party Testing.
4. Customization and Documentation.
Conclusion
Medical grade (IEC 60601-1) and I.T.E. grade (IEC 62368-1) power adapters have distinct safety standards. Choosing correctly is crucial for compliance and user/patient safety.
If your business needs power adapters designed and certified for either I.T.E. or demanding medical applications, please contact me, peter@cnsuperpowers.com.
