5 Tips for Effective Switching Power Supply Design

Views: 538 Author: Site Editor Publish Time: Origin: Site

Switching is used in varieties of electronic devices and it is important for the supply of power. A linear power supply employs the use of diodes as switches.

 However, in the case of a switching power supply, a more accurate and well-balanced output control is achieved with the use of a transistor.

Based on its significance to the overall performance of the electronic device, it is wise to search for the best in the market by partnering with a trusted and reliable switching power supplies manufacturer.

Let’s dwell on the use and applications of switching power supplies while also looking at some of the important tips to consider when choosing your design.

The use of switching power supplies generally has some interesting features that give it an edge over the linear power supply. For example, they are more accurate, efficient, and flexible.

The efficiency of this device can be higher than 90% although it’s a feature that comes with an additional cost.

This type of device employs the use of a pulse width modulation to activate the ON and OFF of the transistor to have accurate timing.

This power supplies device has widespread use in telecommunication, automobile, health industries, etc.

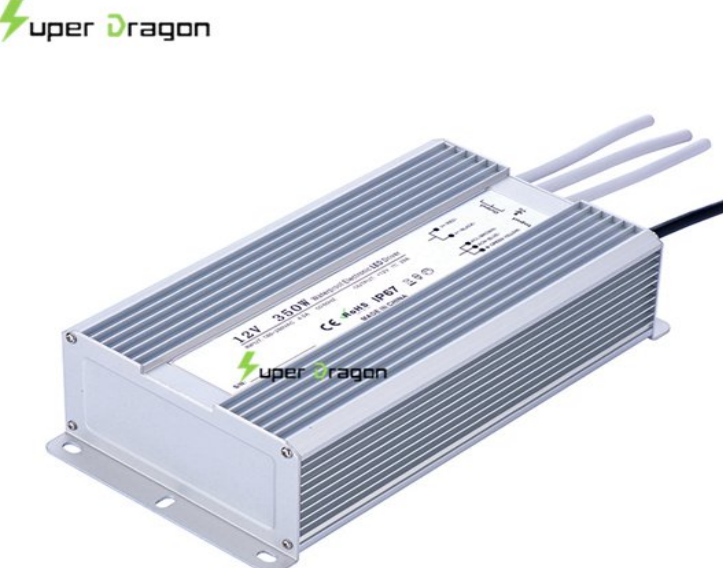

 Switching Power Supply

Tips to ensure effective switching power supply

To ensure effective and efficient switching power supply design, the following tips are very important during the process of manufacturing:

1. Minimize component footprints

It is generally fascinating for switching power supply to be very portable as much as possible, especially in the telecommunication industry. This implies minimized spacing between footprints in the switching power supply.

2. Ensure copper weights are sufficient

Switching power supply generally works over a range of voltages and power. Hence, the current must flow for any of the traces used in the manufacturing of the switch.

3. Perform thermal inquiry for fabricating

The switching power supply board must be designed in such a way that it can enhance the distribution of heat to improve good solder joint while ensuring that the thermal coefficients of the materials are well above the heat your board will experience during assembly.

4. Reduce trace route length

A reduction of the trace length is very important to keep your design close and tight minimize losses and improve signal integrity.

5. Ensure component selection falls within the Contract manufacturer's design for manufacturability tolerance. All the board component specifications must aptly comply with CM'S DFM rules and protocol.



In Need Of High-Quality Switching Power Supply?

The process of choosing a switching power supply may not look like a difficult task but in reality, it is, considering its diverse products in the market.

Hence, the need to partner with a reputable and trusted switching power supply manufacturer.

At Shenzhen Super Dragon Technology Co., Ltd, we have an efficient platform with many years of experience and high-tech experts.

Our delivery system is fast and top-notch and we would get your products to you anywhere around the globe.

Kindly check  and make your order today!

×
