Designing Tips For A Safe Switching Power Adapter

Views: 157 Author: Site Editor Publish Time: Origin: Site

It is not common that an invention will be important to the extent that it will be used in every area of life but switching is used in most electronic circuits as it is important to supply power.



Linear power supplies that also switch use diodes, and switching power adapter or switching power supplies always engages transistors and exact and effective output is needed.



Switching power adapter is accurate, flexible and effective. This model of power supply exploits pulse width modulation which is used to regulate the switching times known as ON and OFF on the transistors



Also, switching power adapter is useful and applied in many applications. It is mostly used in the following areas, automotive chargers, audio equipment, telecommunications devices, computers and mobile device chargers and arc welders.

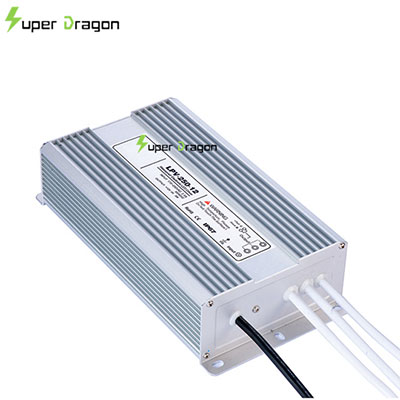

 Switching power adapter

However, purchasing Switching power adapter for all your electronic circuits uses from renowned and reputable suppliers is the most recommended option.



Tips that ascertain effective switching power adapter



1. Reduce part footprints.

It is totally good and convenient for your Switching power adapter ( SPA) use small space when it is used in a digital system.  This explains that it reduces space and creates margins between footprints.



2.  Traceroute lengths are reduced.

The traceroute lengths are reduced; this is done to allow retaining design compact. Also, it increases signal integrity and reduces losses.



3. Guarantee copper weights are suitable.

Switching Power Adapter can work for a range of powers and voltages, however, the traces will convey current within those ranges.



4. Achieve thermal breakdown for manufacturing.

The board is design for adequate heat dissemination and this is done to enable suitable solder joint quality.  And the temperature coefficients of the materials are far better compared to the temperature the boards are exposed to when assembling.



5. The selections tumble within CM DFM acceptance.

The board provisions conform to the CM’s DFM instruction and parameters this is possible because the DFM checks are used.


The tips above reveal that the switching power adapter is well built and the proper stages of PCB manufacturing process are adequately optimized which assures of efficient performance.


Necessities for a safe switching power adapter design

During the manufacturing of switching power adapter mostly for use in digital equipment, its regulatory circuitry is complex and also confined in small switcher IC package.


Doing this ensures appropriate input ranges are applied, and the power supply filter is good for the loads it will carry.


Are you in need of well-built switching Power Adapter?

It is necessary and important to get the best of what is mostly used in the home and office and mostly every facet of life.


So, no need to stress yourself about getting the best switching power adapter because we are available any time of the day to offer you the best.


Kindly contact us to get a well-built switching power adapter from a reliable and reputable manufacturer.


×
