Applications And Tips For A Good Switching Power Supply Design

Views: 65 Author: Site Editor Publish Time: Origin: Site

The invention of the transistor has indirectly or directly transformed almost every part of life.



This particular invention has brought about the production of various electronics and PCBs that are virtually part of what we use today at work, home, and other places as part of our systems, devices, and equipment.



Although, many improvements have taken place over time to the original design, and the functions are still the same.



Similarly, the function is to control signal input to an output switching or circuit.

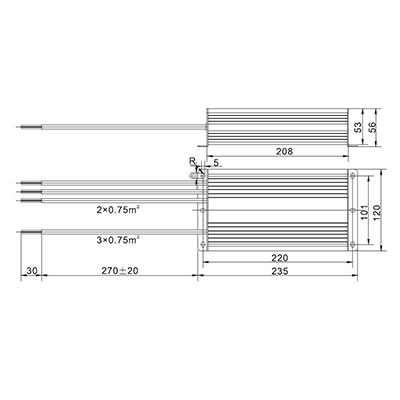

 Waterproof Power Supply

Therefore, switching supply is used in many electronic circuits and it is categorically significant in power supplies.



A type of power supplies known as linear power supplies mainly makes use of diodes. The diodes are also a form of switches.



Nevertheless, the switch-mode power supplies (SMPSs) or switching power supplies regularly make use of transistors and there is a requirement for capable output control.



However, if you need high-quality switching power supplies, contacting a reputable switching power supplies manufacturers is the best option.



Applications and Uses of Switching Power Supplies

Generally, switching power supplies is more flexible when comparing with linear power supplies.



The power supply model in switching power supplies mainly uses pulse width modulation (PWM) in controlling the switching times of transistors; like the OFF and ON switching.



Alongside this, there is a generation of accurate output signals. Also, switching power supplies are employed in a variety of applications.



Some of the areas whereby they mostly used to be digital materials such as a mobile device charger, medical test equipment, computers, audio equipment, computers, telecommunications, automotive charger, and other systems.



Also, apart from the switching power supply flexibility, their efficiencies are high with a rate of 90%.



The progressive features come at a cost. Nevertheless, the use of devices like transistors for switching generates high-frequency noise.



Tips to Ensure Efficient Switch-Mode Power Supply Manufacturing

The customized switching supplies are mainly designed by switching power supplies manufacturers.



Therefore, the following tips will make sure that your design possibilities and it will assist your contract manufacturer (CM) in enhancing your PCB manufacturing efficiency.



1. Minimize the footprints component.

It is normally desired that your switching power supplies to occupy the possible little space, mostly, if it is used in the digital system. It means clearances and minimizing spacing between footprints.



It is generally desirable for your SMPS to occupy the smallest amount of space possible, especially when used in a digital system. This means minimizing spacing and clearances between footprints.



2 Minimize trace lengths.

By reducing the trace length can help your design to be compacted. This can improve signal integrity and minimizes losses.



3 Ensure the weight of copper is adequate.

When your switching power supplies operate at particular powers and voltages, your traces must accommodate the current within the provided ranges.



4 Perform thermal analysis for manufacturing.

When designing your board, you need to design your board for the effective distribution of heat to enable the best solder joint.



Also, you need to make sure that the material coefficient of temperature is higher than the exposure of your board during assembly.



Conclusion

Switching power supplies are more flexible when compared to linear power supplies.



They are mostly used for digital materials such as mobile device charger, medical test equipment, computers, audio equipment, and so on



To ensure that you design a switching power supplies with high-quality components, contacting a reputable switching power supplies manufacturers with years of experience for the best guide and supplies.


×
