Just as the heart regulates the human system, so is power supplies to an electrical and electronic circuit.

You may ask how? It's simple! Without the power supply to the entire circuit, it will look like an ordinary piece of furniture.

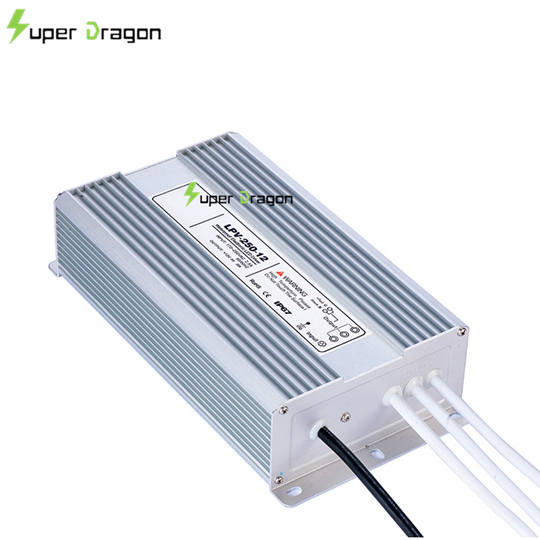

Switching Power Supplies in china

To a particular circuit, there is a kind of power that requires diverse ranges and features. Therefore, there is a need to source power for the required mode.

This is always achieved by embracing suitable power switches. Primarily, various forms of circuits function with different kinds of switching power such as switch-mode power supply (SMPS).

SMPS denotes when the power supply is involved with the switching regulator to transform the electrical power from one form to another with acceptable features.

However, for your optimal switching mode for your electrical and electronic circuits, for the best performance, you need to source for switching power supplies from a professional switching power supplies in China that has some proven and outstanding years of performance.

So, for your next power project, take a deep look of different types of SMPS used in power-switching:

1.DC-DC Switching mode

DC-DC switching mode is a switching power supplier that resolved and filtered power received from the alternating current (AC) main to high voltage DC.

The power switching occurs at a vast rate of speed and supply to the main site of the step-down transformer.

The transformer is only a division of the dimension of an equal 50Hz unit. This is of great advantage because it releases the mass and heaviness problems.

The transformer comprises a filter and rectifier o/p at the minor side. Then it is now sent to the o/p of the power supply, and a tester of this o/p is sent back to the switch to regulate the o/p voltage.

2.Forward switcher

In a forward switcher, the current is transmitted by the plug when the transistor is leading as well as when it is not.

Here the diode plays a vital role by conveying the current through the OFF period of the transistor. Hence, the current flow into the load during when the transistor is ON as well as when it is not.

The plug stores energy during the ON period and also allows some energy into the o/p loader.

3.Fly-back and Self-Oscillating Fly-back Switcher

In flyback power switching suppliers, the energy is supply by the magnetic field of the inductor throughout the ON period of the switch.

The energy is collapsed into o/p voltage circuit when the button is in the open state. The liability level controls the output voltage.

Whereas in the self-oscillating flyback power switching suppliers is the most simple converter or switch based on the source of the flyback.

During the time of conduction of the switching transistor, the current pass through the transformer.

The primary switcher ramping up linearly with the angle equal to Vin/Lp. The induced voltage in the secondary and feedback winding makes the fastest recovery rectifier opposite biased and holds the conducting transistor ON.

The major current touches a peak value, where the core activates to steep, the current inclines to increase very severely.

This type of power switching suppliers cannot be reinforced by the fixed base energy offered by the feedback winding. As a result, the switching starts to come out of overload.

Conclusion

Switching power suppliers regulate the switch mode power supply. A series switching element switches the current supply to a smoothing capacitor turn ON and OFF.

On the contrary, all these provide you with handy information on how to source for a power regulator switch.

Finally, always make sure that you team up with a reliable switching power supplies China  for the best deal.


×
