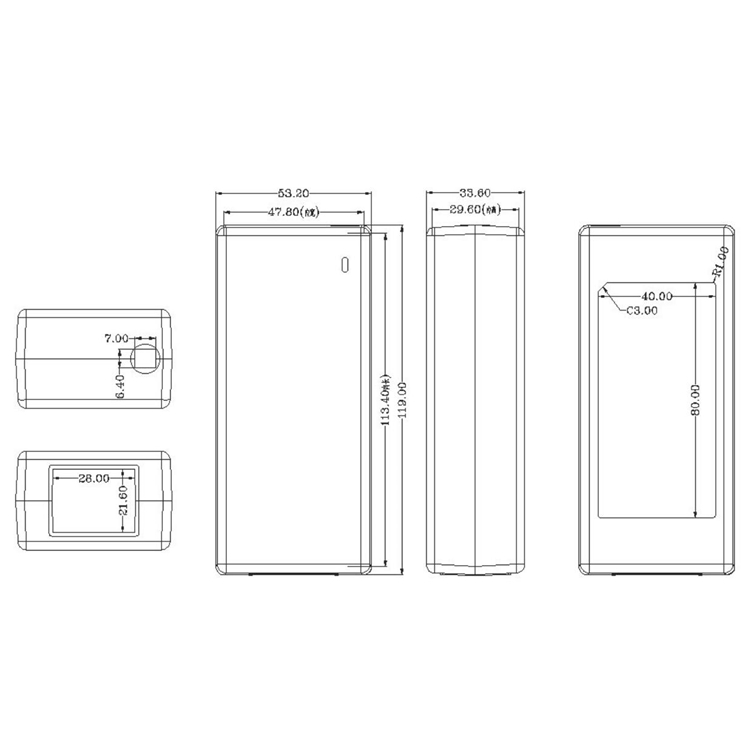

Dimension LxWxH(mm)
119*53.2*33.6MM
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
Inquire
| Model | SD0906000 | SD1205000 | SD1903000 | SD2402500 |
|---|---|---|---|---|
| Input Voltage | 100-240VAC | |||
| Input Frequency | 50/60Hz | |||
| Wattage | 54W | 60W | 57W | 60W |
| Output Voltage | 9V | 12V | 19V | 24V |
| Output Current | 6A | 5A | 3A | 2.5A |
| Form Factor | Desktop Power Adapters | |||
| AC Inlet/Plug | C8,C14,C6 | |||
119*53.2*33.6MM

Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
