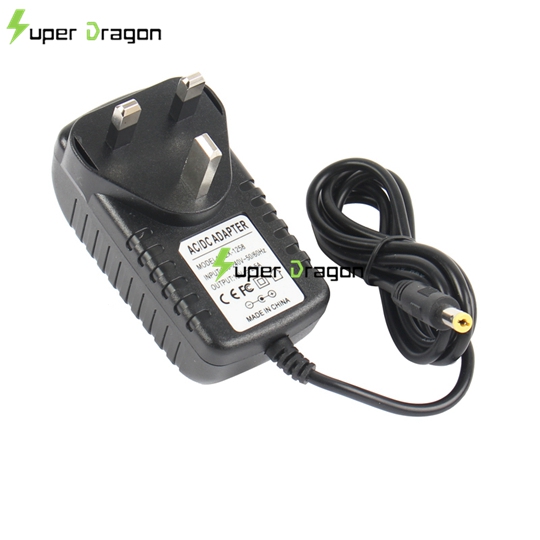

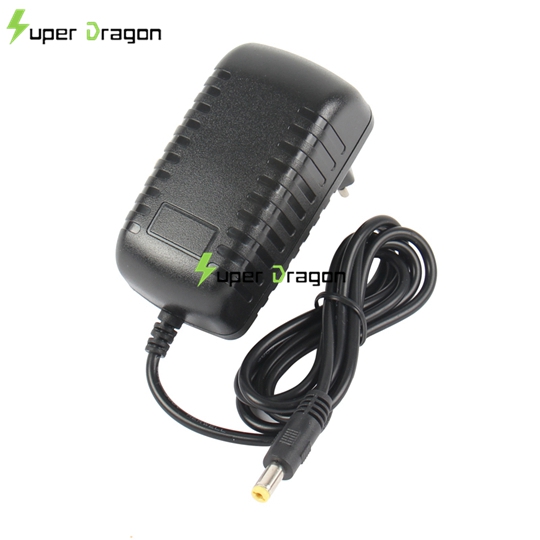

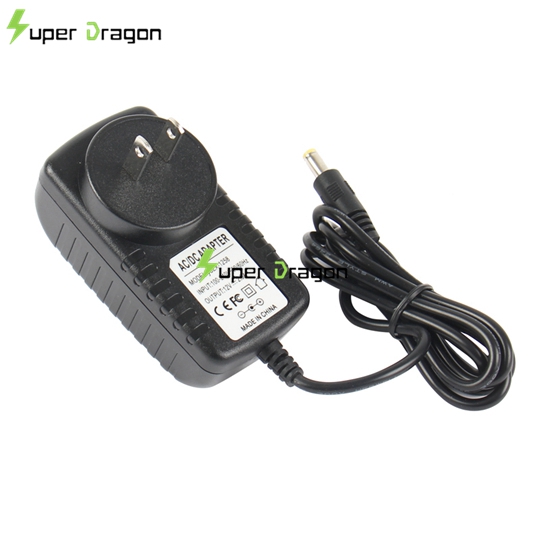

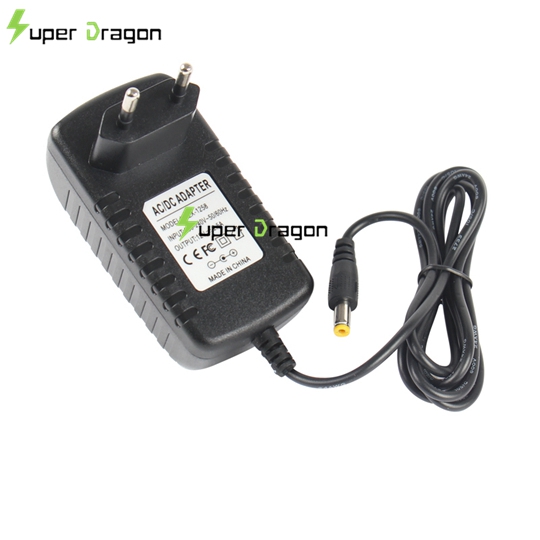

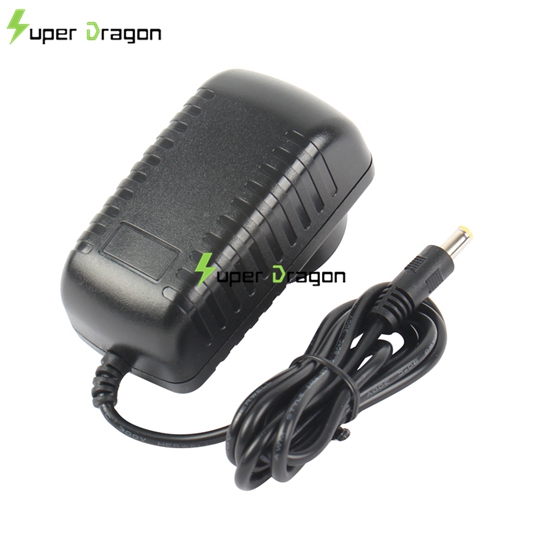

9V-48V,500MA-3000MA,Wall-Mount Switching Power Adapter

FEATURES

    • Meet IEC 60950-1

    • Over Current Protection

    • Meet Energy Efficiency DOE Level VI

    • Over Temperature Protection

    • Meet Code of Conduct Version 5 Tier 2

    • Over Voltage Protection

    • High Reliability

    • Electronic Short Circuit Protection

    • EMC Standard: EN55032/EN55024 Class B

Click here, you will get more details.

Inquire
×

Product Inquire

captcha

Product Specification

ModelSD0903000SD1202500
SD1502000SD1801500SD1901500SD2401250
Input Voltage100-240VAC
Input Frequency50/60Hz
Wattage27W30W30W27W28.5W30W
Output Voltage9V12V15V18V19V24V
Output Current3A2.5A2A1.5A1.5A1.25A
Form FactorWall Mount Power Adapters
AC Inlet/PlugCN/EU/US/AU/UK/KR/AR/JP/BR/ES/ZA

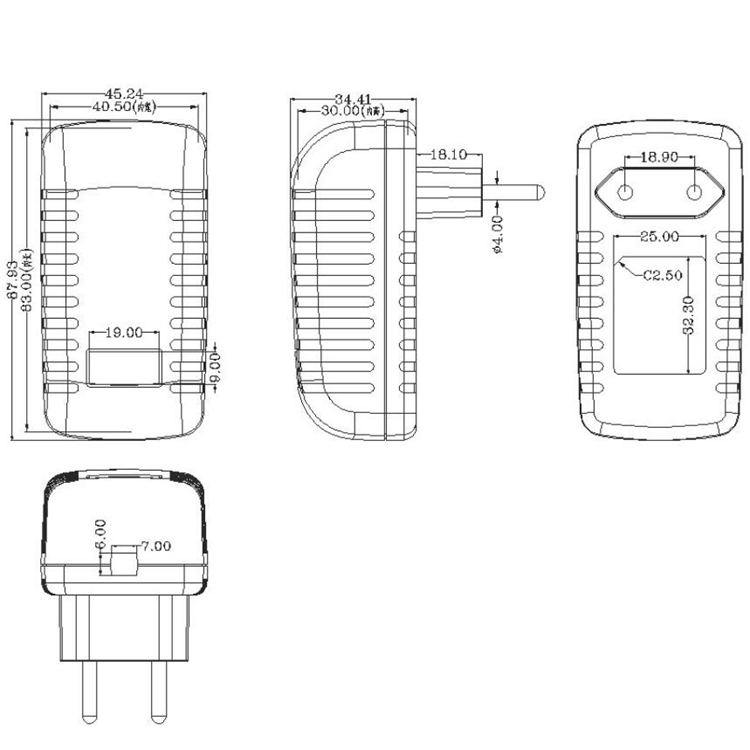

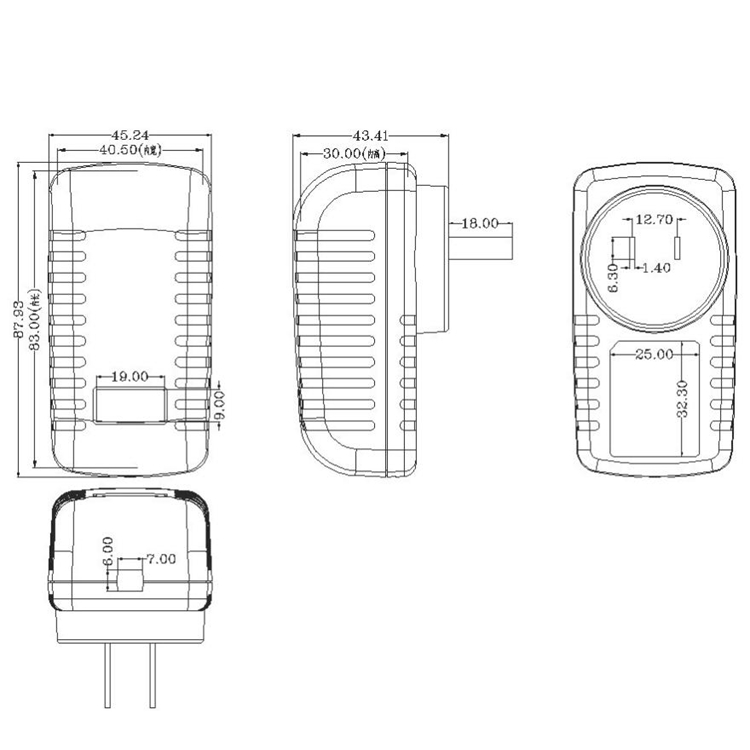

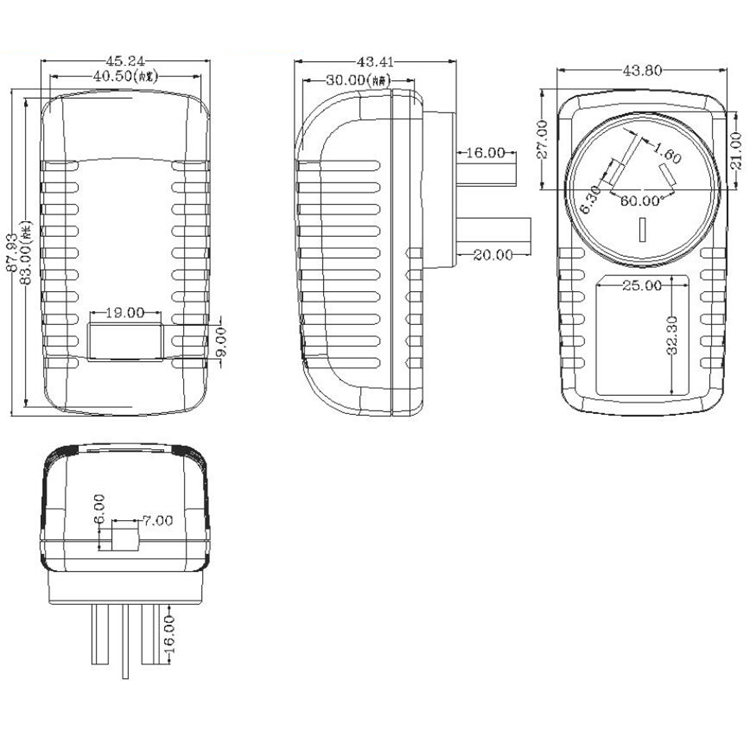

Mechanical Specification

Dimension LxWxH(mm)

87.93*45.24*30MM (CN\US\JP Version) 87.93*45.24*33.96MM (UK\AU\AR\EU\KR\BR Version)

Production Applications

Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…

FAQ

Can I have sample even pre-production before I send you order?
Yes.We can send you a free sample for your approval first.
What’s your MOQ?
Usually,our MOQ is 100 pcs/model. Except for some special designed model.
What’s the leadtime for mass production?
Usually our leadtime for 5000 pcs is 7 days.Depend on your quantity and the model you order.
How should we pay if we order from you?
For small amount,you can pay by Paypal,Wechat,Alipay.When amount more than USD600,you can pay by bank.
What’s the warranty for your products?
We have 2 years(24 months) warranty.
Can I make OEM package?
Yes.We can make OEM package when the quantity over 1000 pcs of each model.
