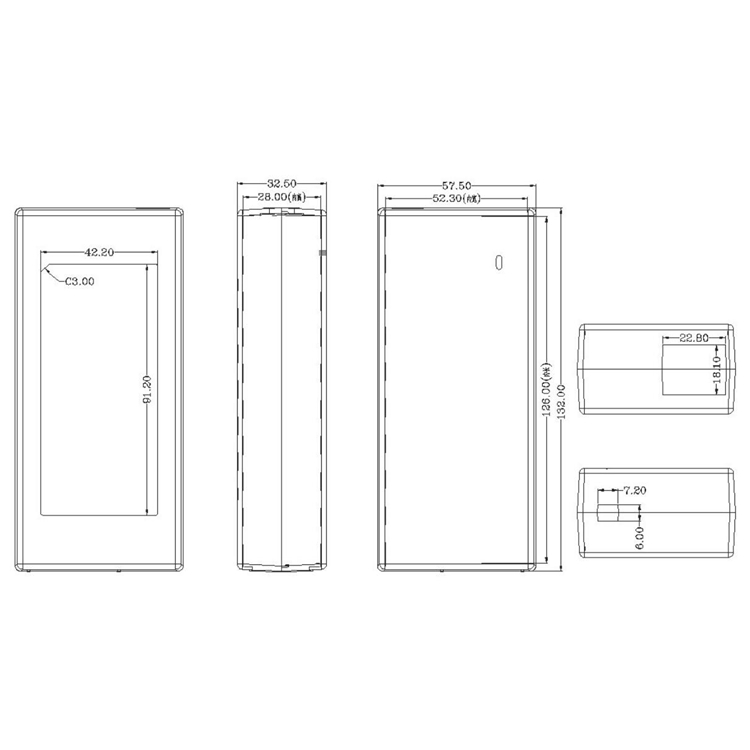

Dimension LxWxH(mm)
132*57.5*32.5MM
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0907000 | SD1206000 | SD2403000 | SD3602000 | SD4801500 |
---|---|---|---|---|---|
Input Voltage | 100-240VAC | ||||
Input Frequency | 50/60Hz | ||||
Wattage | 63W | 72W | 72W | 72W | 72W |
Output Voltage | 9V | 12V | 24V | 36V | 48V |
Output Current | 7A | 6A | 3A | 2A | 1.5A |
Form Factor | Desktop Power Adapters | ||||
AC Inlet/Plug | C8,C14,C6 |
132*57.5*32.5MM
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
