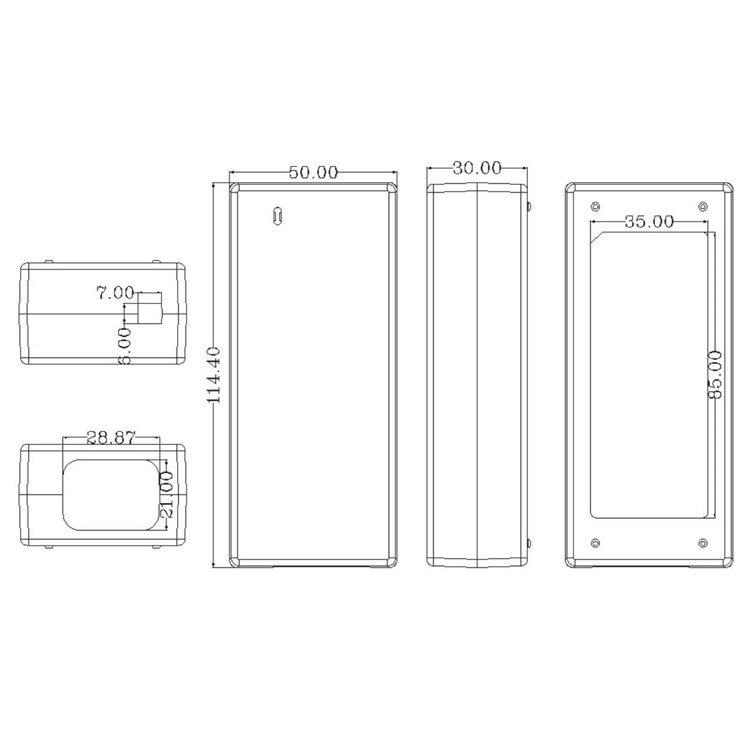

Dimension LxWxH(mm)
114.4*50*30MM
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0506000 | SD1203000 | SD2401500 | SD3601000 | SD4800600 |
---|---|---|---|---|---|
Input Voltage | 100-240VAC | ||||
Input Frequency | 50/60Hz | ||||
Wattage | 30W | 36W | 36W | 36W | 28.8W |
Output Voltage | 5V | 12V | 24V | 36V | 48V |
Output Current | 6A | 3A | 1.5A | 1A | 0.6A |
Form Factor | Desktop Power Adapters | ||||
AC Inlet/Plug | CN/EU/US/AU/UK/KR/AR/JP/BR/ES/ZA |
114.4*50*30MM
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
