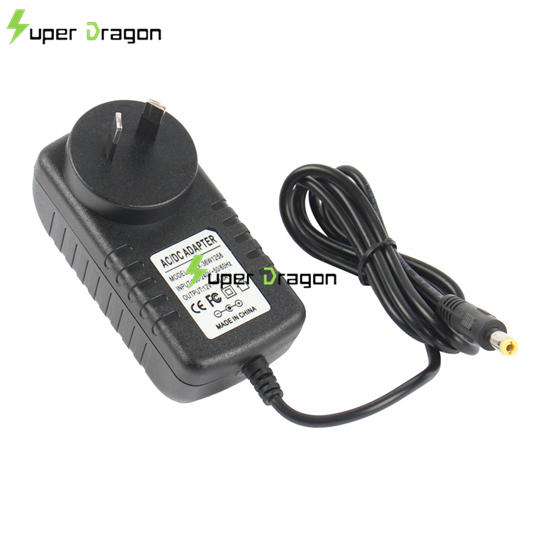

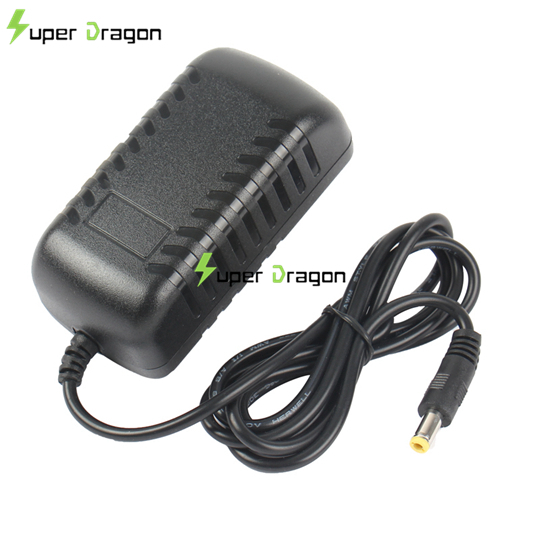

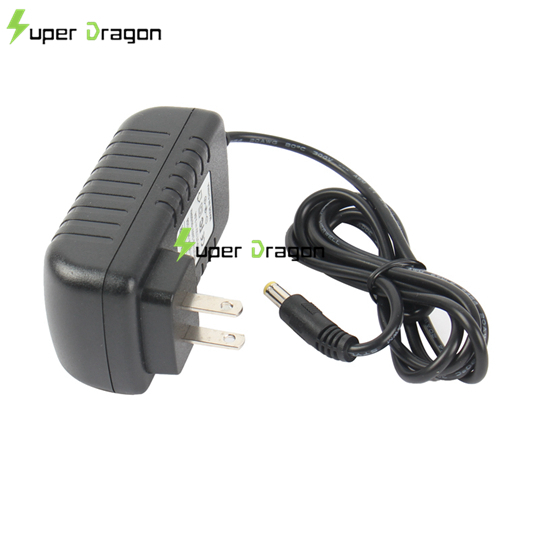

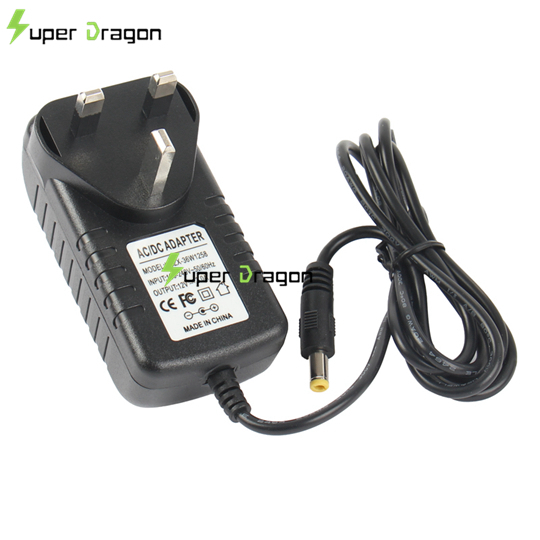

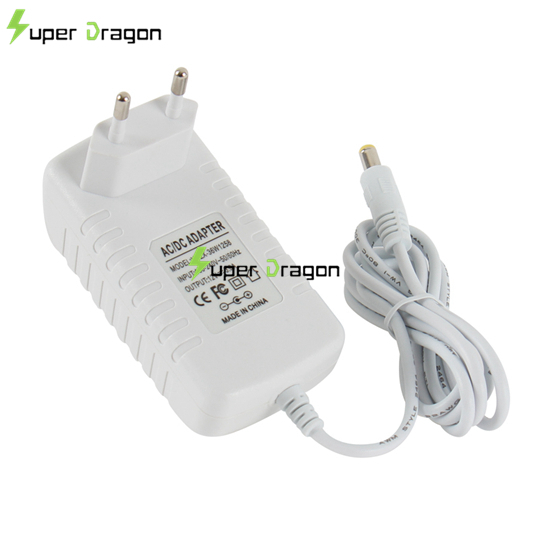

5V-36V,1A-4A Wall Mounted Power Adaptor

FEATURES

Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B

Click here, you will get more details.

Inquire

Product Specification

Model	SD0504000	SD0903500	SD1203000	SD1502400	SD2401500
Input Voltage	100-240VAC
Input Frequency	50/60Hz
Wattage	20W	31.5W	36W	36W	36W
Output Voltage	5V	9V	12V	15V	24V
Output Current	4A	3.5A	3A	2.4A	1.5A
Form Factor	Wall Mount Power Adapters
AC Inlet/Plug	CN/EU/US/AU/UK/KR/AR/JP/BR/ES/ZA

36W wall mount switching adapter.pdf

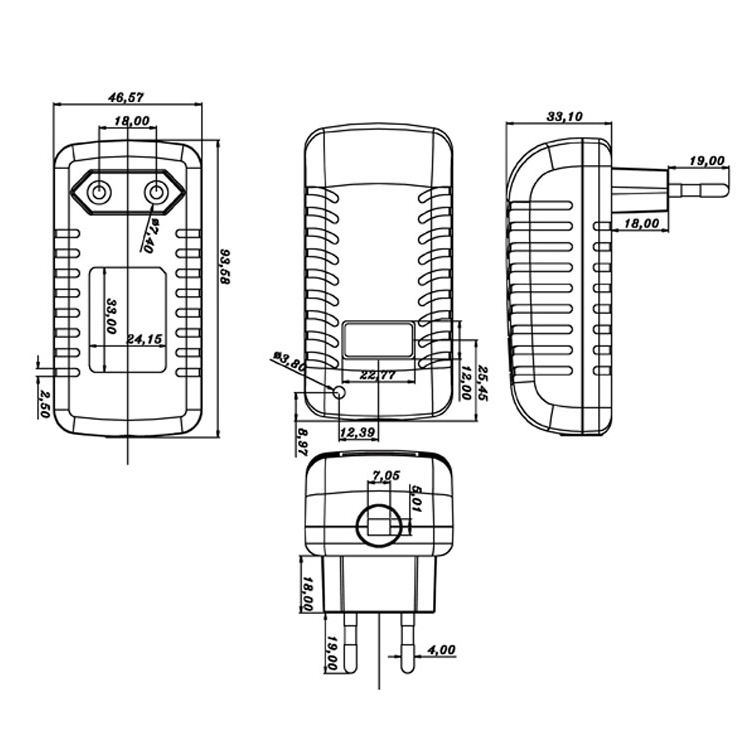

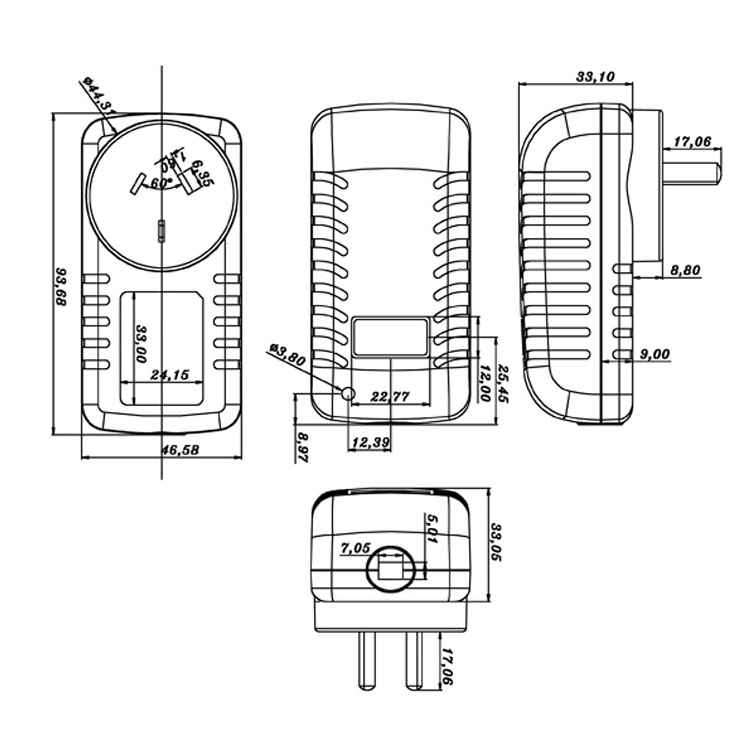

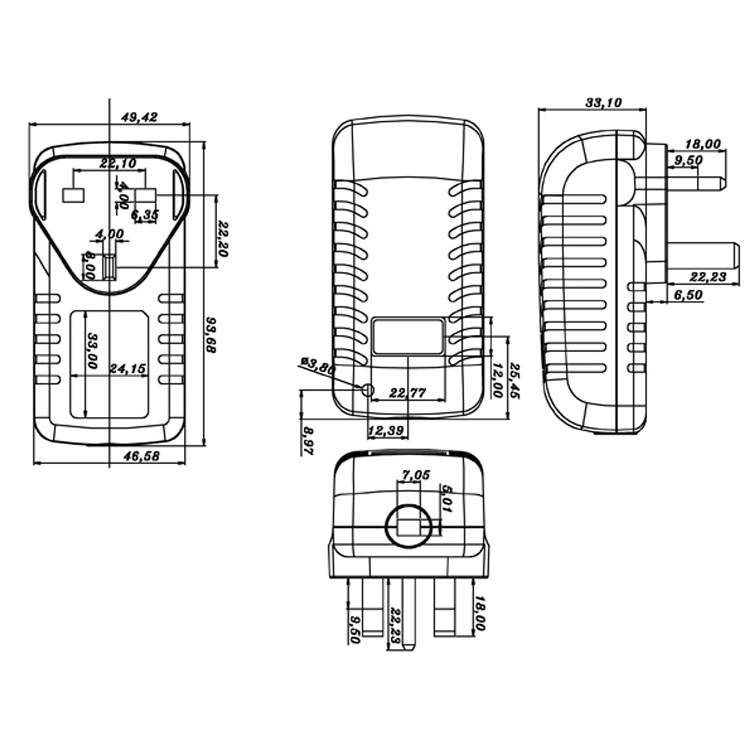

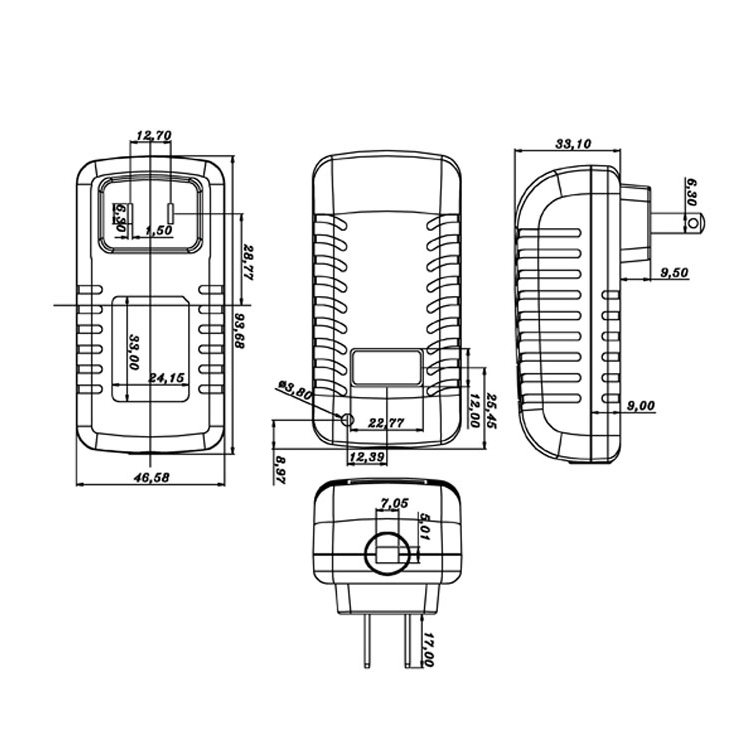

Mechanical Specification

Dimension LxWxH(mm)

94*47*39MM (CN\US\JP\AU\AR Version) 94*47*53MM (EU\KR\BR Version) 94*50*40MM (UK)

Production Applications

Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…

FAQ

Can I have sample even pre-production before I send you order?

Yes.We can send you a free sample for your approval first.

What’s your MOQ?

Usually,our MOQ is 100 pcs/model. Except for some special designed model.

What’s the leadtime for mass production?

Usually our leadtime for 5000 pcs is 7 days.Depend on your quantity and the model you order.

How should we pay if we order from you?

For small amount,you can pay by Paypal,Wechat,Alipay.When amount more than USD600,you can pay by bank.

What’s the warranty for your products?

We have 2 years(24 months) warranty.

Can I make OEM package?

Yes.We can make OEM package when the quantity over 1000 pcs of each model.
