Dimension LxWxH(mm)
114.4*50*30MM
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
Inquire
| Model | SD0504000 | SD0903000 | SD1202500 |
|---|---|---|---|
| Input Voltage | 100-240VAC | ||
| Input Frequency | 50/60Hz | ||
| Wattage | 20W | 27W | 30W |
| Output Voltage | 5V | 9V | 12V |
| Output Current | 4A | 3A | 2.5A |

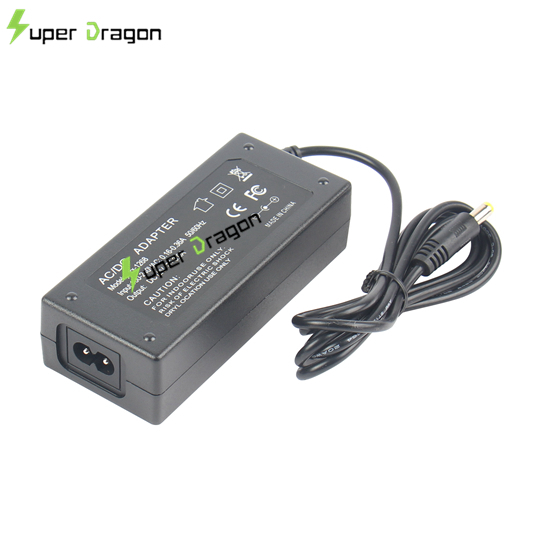

| Form Factor | Desktop Power Adapters | ||
| AC Inlet/Plug | C8,C14,C6 | ||
114.4*50*30MM

Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
