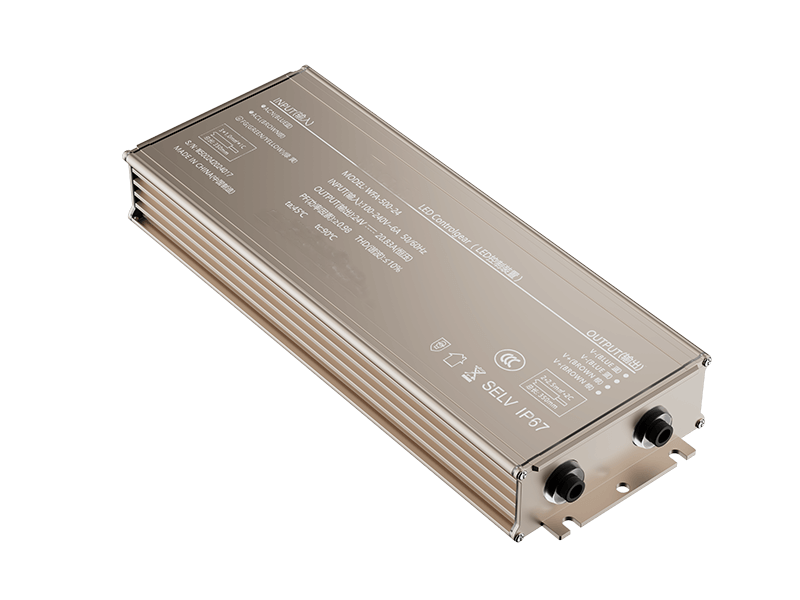

500W Waterproof Outdoor LED Power Supply 110V AC To 12V 24V 36V 48V DC Low Voltage Output LED Driver

FEATURES

• Up to 94% efficiency

• Constant voltage output

• IP67 waterproof

• Lightning protection: differential mode 4KV, common mode 6KV (optional)

• All-round protection: short-circuit protection, over-temperature protection,
over-voltage protection, over-current protection.

• SELV output

Click here, you will get more details.

Inquire

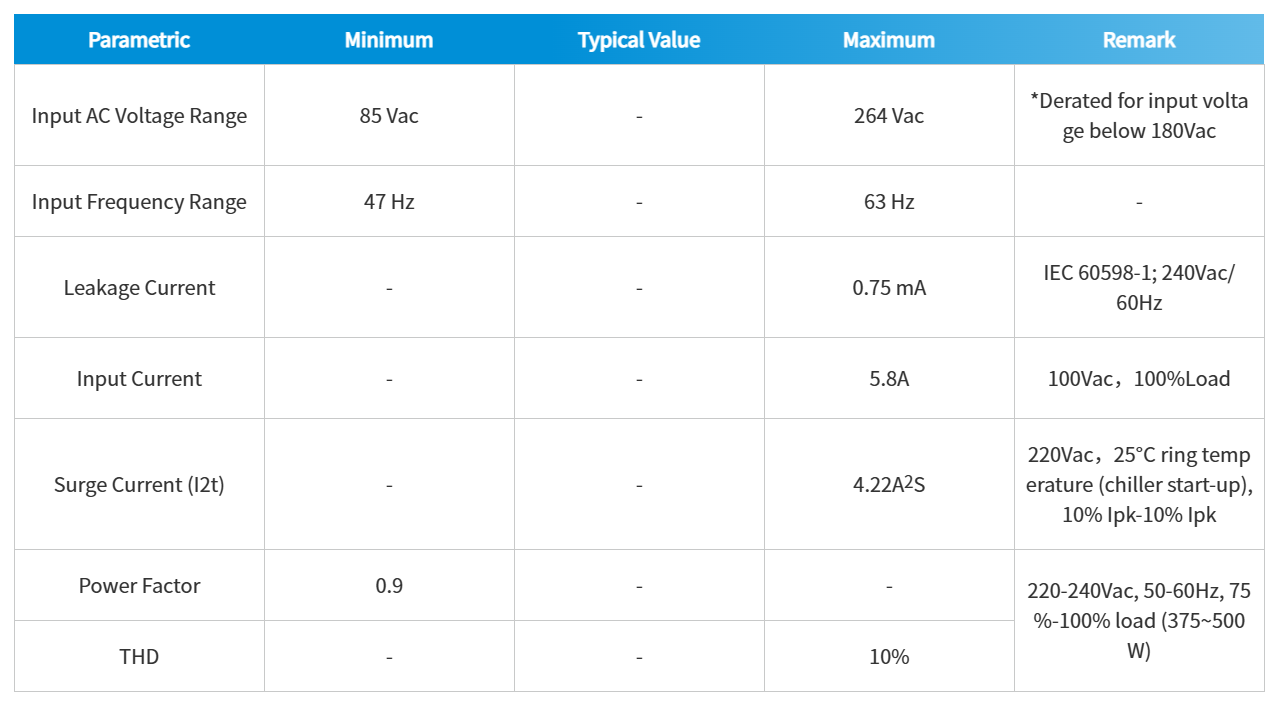

Product Specification

Model	SD-WFA-500-12	SD-WFA-500-24	SD-WFA-500-36	SD-WFA-500-48
Input Voltage	90-264VAC
Input Frequency	47-63Hz
Wattage	200W
Output Voltage	12V	24V	36V	48V
Output Current	41.7A	20.8A	13.89A	10.4A
Form Factor	Waterproof Switching Power Supplies
AC Inlet/Plug	Open end

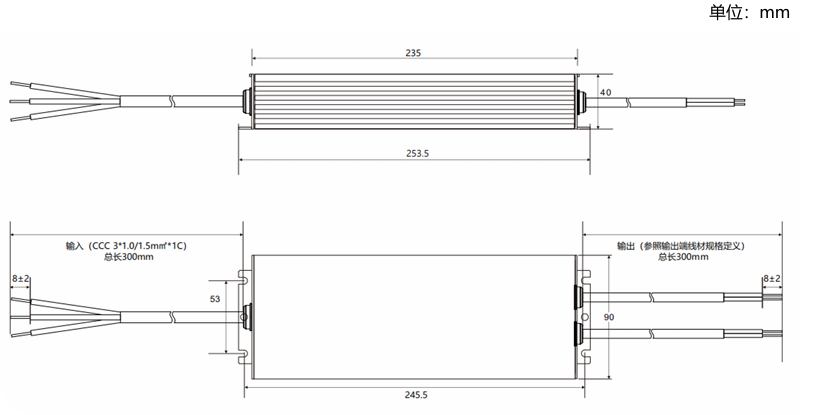

Mechanical Specification

Dimension LxWxH(mm)

500W water proof power driver dimension.png

Production Applications

• LED Applications

• Industrial automation machinery

• Industrial control systems

• Mechanical and electrical equipment

• Electronic instruments, equipment and devices

• Household appliances


FAQ

Can I have sample even pre-production before I send you order?

Yes.We can send you a free sample for your approval first.

What’s your MOQ?

Usually,our MOQ is 100 pcs/model. Except for some special designed model.

What’s the leadtime for mass production?

Usually our leadtime for 5000 pcs is 7 days.Depend on your quantity and the model you order.

How should we pay if we order from you?

For small amount,you can pay by Paypal,Wechat,Alipay.When amount more than USD600,you can pay by bank.

What’s the warranty for your products?

We have 2 years(24 months) warranty.

Can I make OEM package?

Yes.We can make OEM package when the quantity over 1000 pcs of each model.
