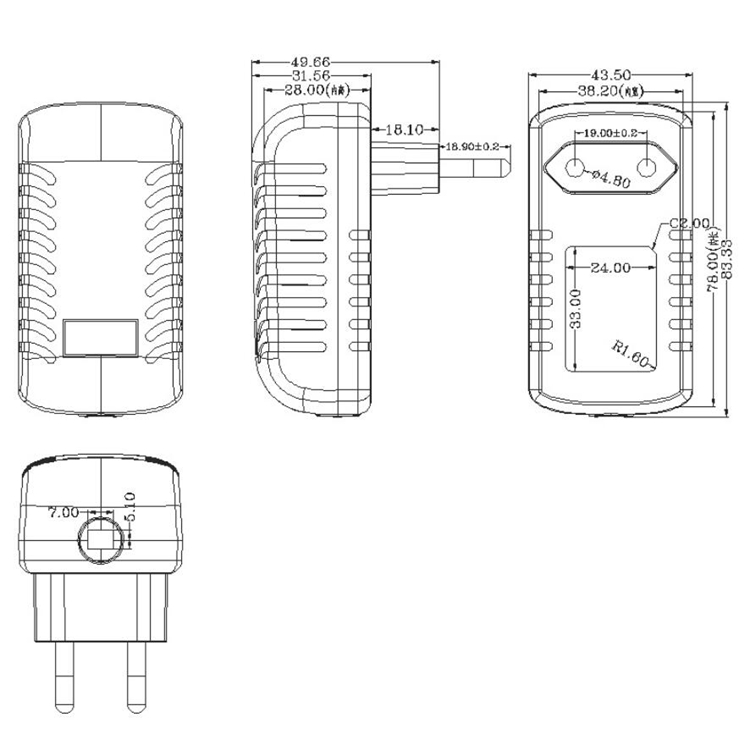

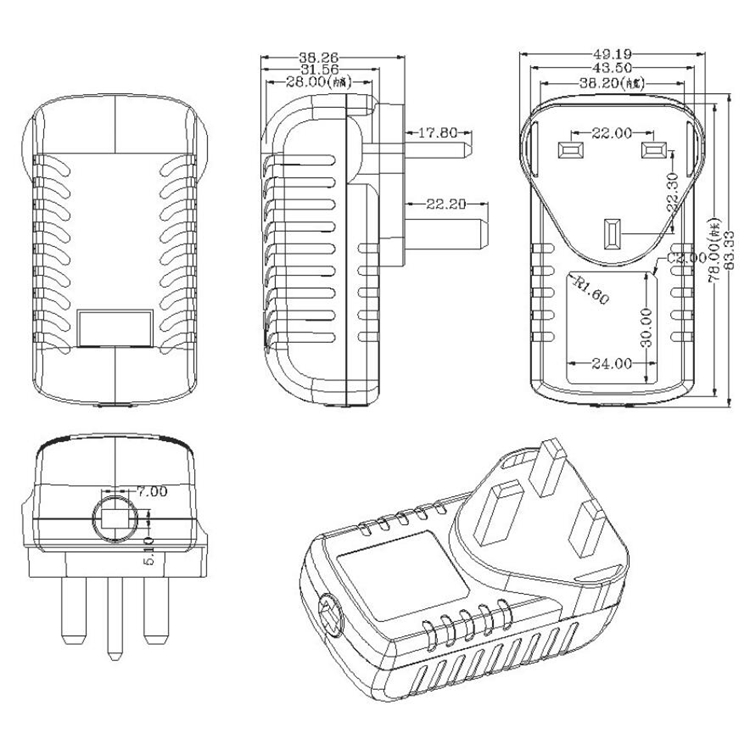

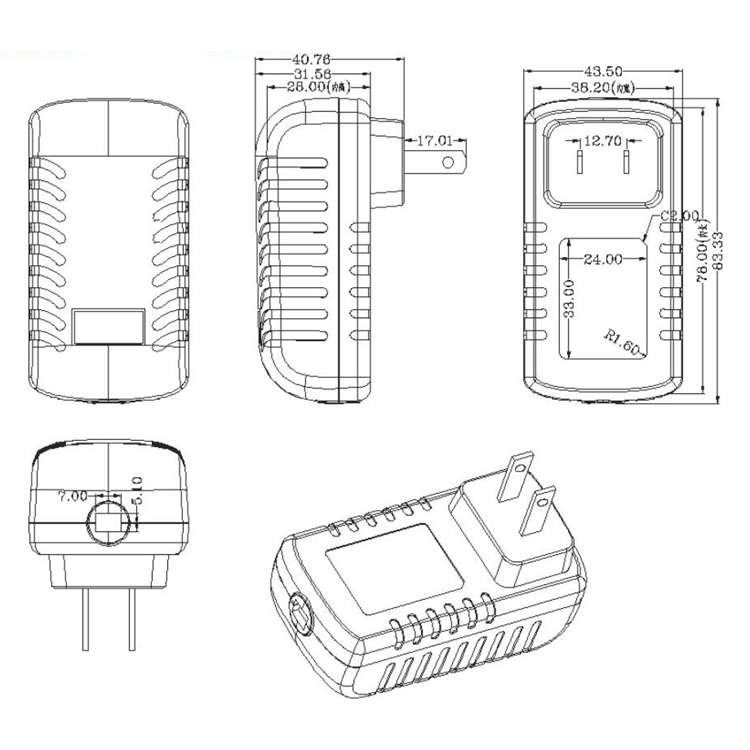

Dimension LxWxH(mm)
83*43.5*31MM (CN\US\JP\EU\KR\BR Version) 83*45*38MM (AU\AR) 83*45*38MM (ZA\IN)
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0503000 | SD0902500 | SD1202000 | SD2001000 | SD2401000 |
---|---|---|---|---|---|
Input Voltage | 100-240VAC | ||||
Input Frequency | 50/60Hz | ||||
Wattage | 15W | 22.5W | 24W | 20W | 24W |
Output Voltage | 5V | 9V | 12V | 20V | 24V |
Output Current | 3A | 3A | 2A | 1A | 1A |
Form Factor | Wall Mount Power Adapters | ||||
AC Inlet/Plug | CN/EU/US/AU/UK/KR/AR/JP/BR/ES/ZA |
83*43.5*31MM (CN\US\JP\EU\KR\BR Version) 83*45*38MM (AU\AR) 83*45*38MM (ZA\IN)
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
