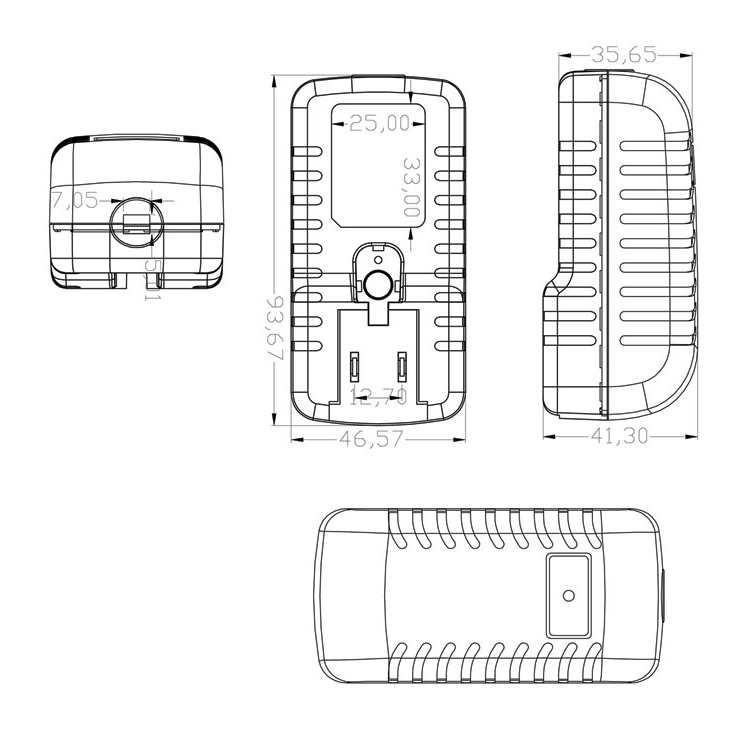

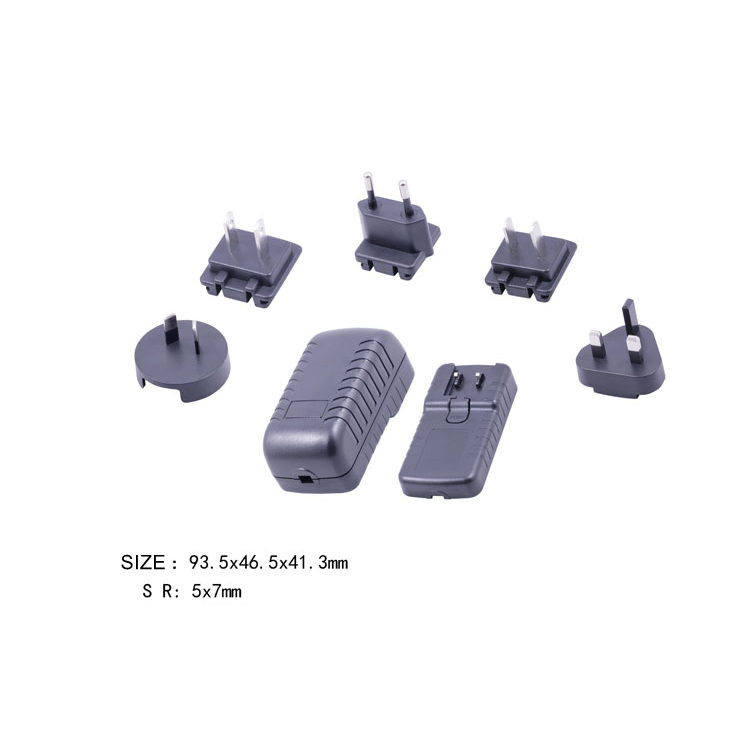

Dimension LxWxH(mm)
93.5*46.5*41.3MM (CN\US\JP\UK\AU\AR\EU\KR\BR Version)
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0504000 | SD0903500 | SD1203000 | SD2401500 |
---|---|---|---|---|
Input Voltage | 100-240VAC | |||
Input Frequency | 50/60Hz | |||
Wattage | 20W | 31.5W | 36W | 36W |
Output Voltage | 5V | 9V | 12V | 24V |
Output Current | 4A | 3.5A | 3A | 1.5A |
Form Factor | Wall Mount Power Adapters | |||
AC Inlet/Plug | US/EU/AU/UK |
93.5*46.5*41.3MM (CN\US\JP\UK\AU\AR\EU\KR\BR Version)
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
