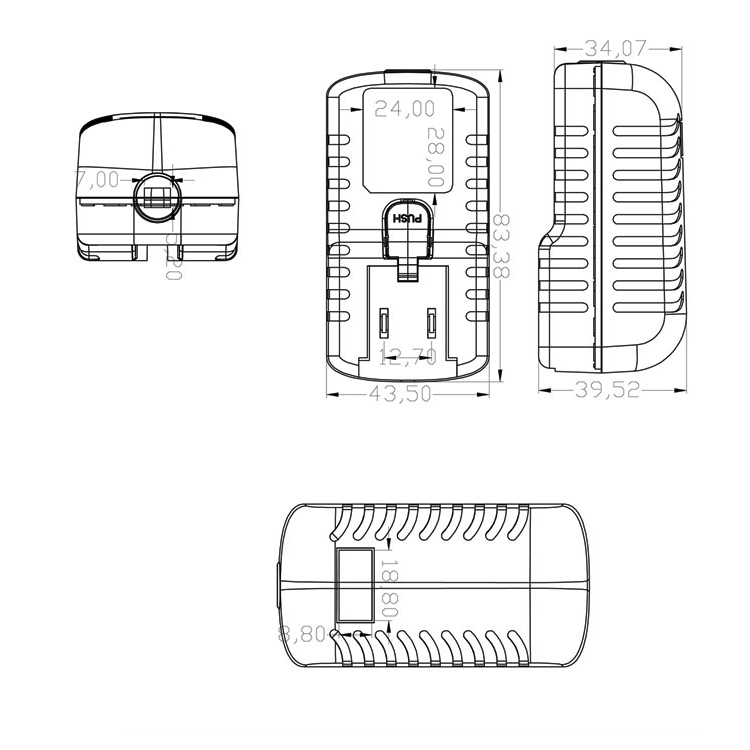

Dimension LxWxH(mm)
83*43.5*39.5MM (CN\US\JP\UK\AU\AR\EU\KR\BR Version)
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0752500 | SD1202000 | SD2401000 |
---|---|---|---|
Input Voltage | 100-240VAC | ||
Input Frequency | 50/60Hz | ||
Wattage | 18.75W | 24W | 24W |
Output Voltage | 7.5V | 12V | 24V |
Output Current | 2.5A | 2A | 1A |
Form Factor | Wall Mount Power Adapters | ||
AC Inlet/Plug | EU/US/AU/UK |

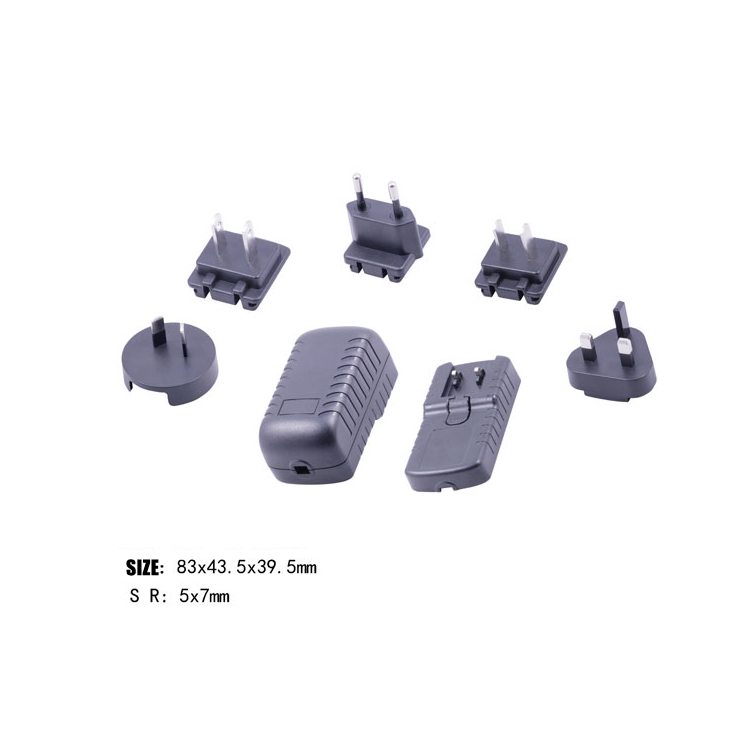

83*43.5*39.5MM (CN\US\JP\UK\AU\AR\EU\KR\BR Version)
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
