Dimension LxWxH(mm)

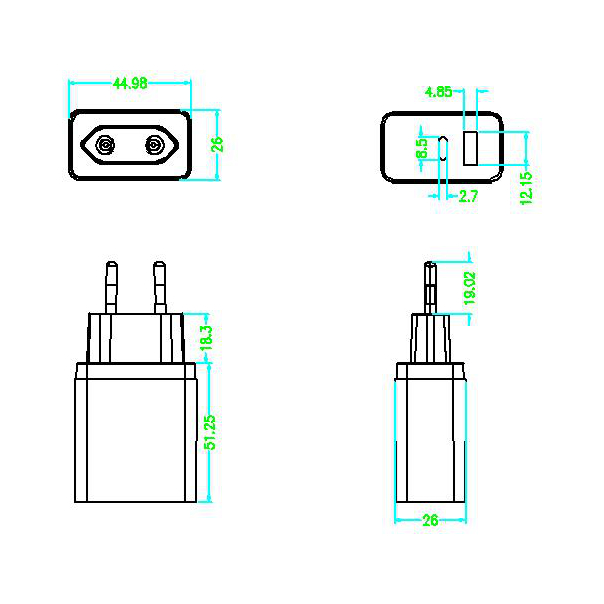

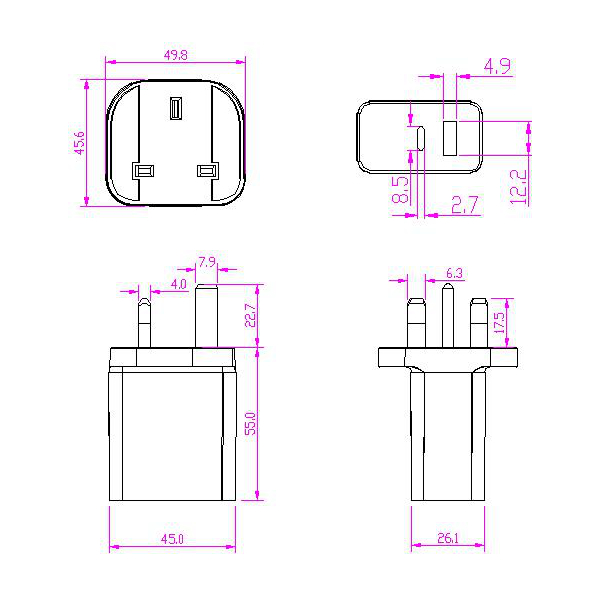

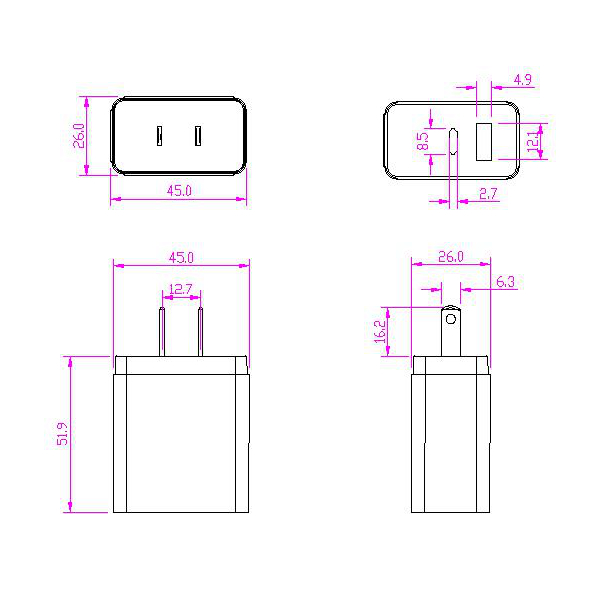

51.9*45*26MM (CN\US\JP Version) 60*45*26MM (EU\BR\KR Version) 55*49.8*26MM (UK Version)
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SDM6-QD3.0 | ||
---|---|---|---|
Input Voltage | 100-240VAC | ||
Input Frequency | 50/60Hz | ||
Wattage | 18W | ||
Output Voltage | 5V | 9V | 12V |
Output Current | 3A | 2A | 1.5A |
Form Factor | Chargers | ||
AC Inlet/Plug | CN/EU/US/AU/UK/KR/AR/JP/BR/ES/ZA |
51.9*45*26MM (CN\US\JP Version) 60*45*26MM (EU\BR\KR Version) 55*49.8*26MM (UK Version)
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
