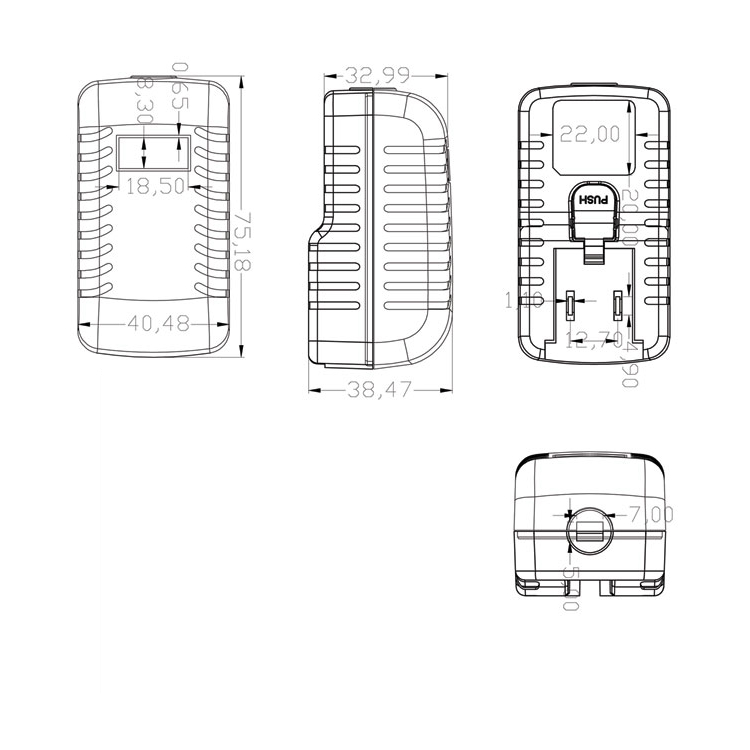

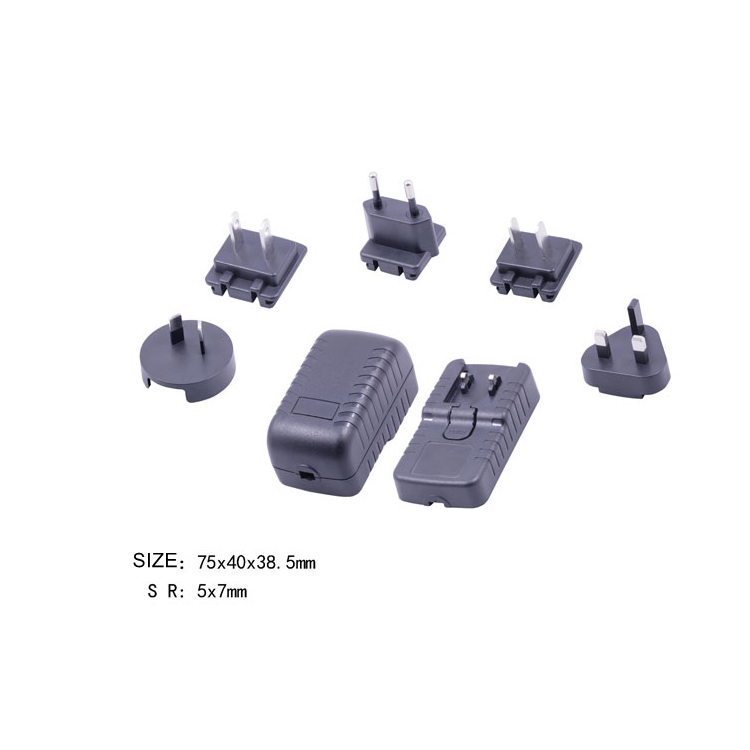

Dimension LxWxH(mm)
75*40*38.5MM (CN\US\JP\UK\AU\AR\EU\KR\BR Version)
Meet IEC 60950-1
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.
InquireModel | SD0502000 | SD0901000 | SD1201000 | SD2400500 |
---|---|---|---|---|
Input Voltage | 100-240VAC | |||
Input Frequency | 50/60Hz | |||
Wattage | 10W | 9W | 12W | 12W |
Output Voltage | 5V | 9V | 12V | 24V |
Output Current | 2A | 1A | 1A | 0.5A |
Form Factor | Wall Mount Power Adapters | |||
AC Inlet/Plug | EU/US/AU/UK |
75*40*38.5MM (CN\US\JP\UK\AU\AR\EU\KR\BR Version)
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
