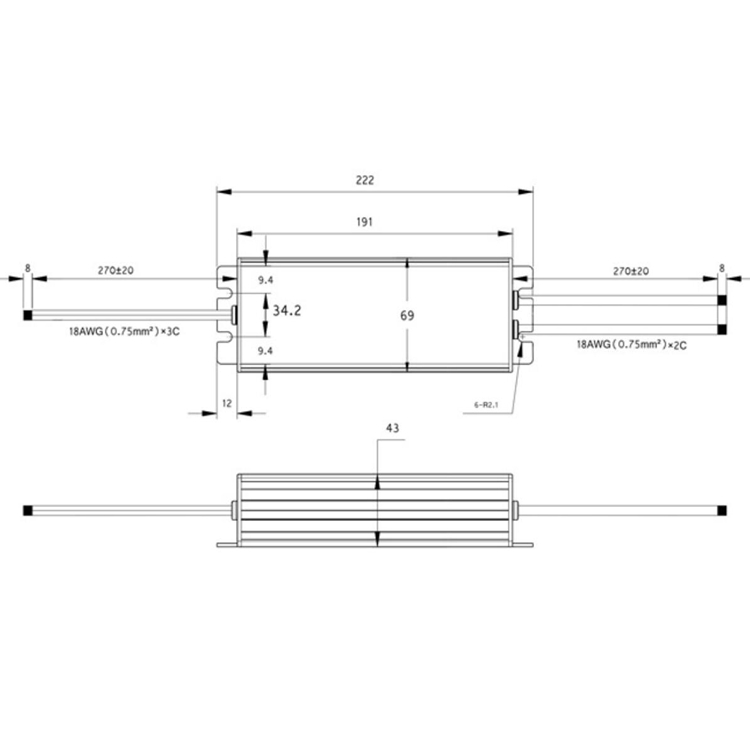

Dimension LxWxH(mm)
222*69*43MM
Meet IP67 Rating
Over Current Protection
Meet Energy Efficiency DOE Level VI
Over Temperature Protection
Meet Code of Conduct Version 5 Tier 2
Over Voltage Protection
High Reliability
Electronic Short Circuit Protection
EMC Standard: EN55032/EN55024 Class B
Click here, you will get more details.

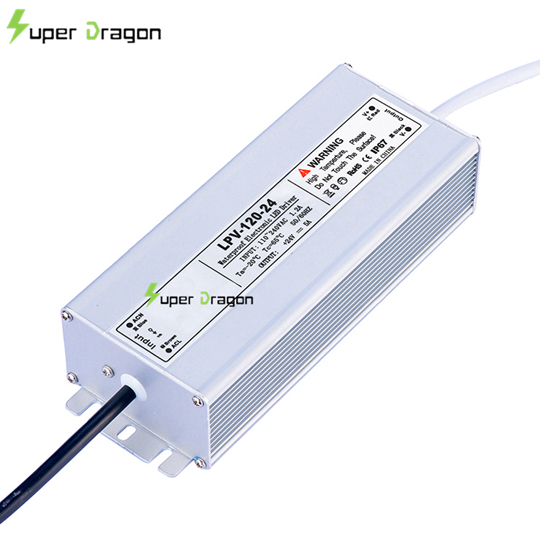

InquireModel | SD-LPV-120-12 | SD-LPV-120-24 | SD-LPV-120-36 |
---|---|---|---|
Input Voltage | 100-240VAC | ||
Input Frequency | 50/60Hz | ||
Wattage | 120W | ||
Output Voltage | 12V | 24V | 36V |
Output Current | 10A | 5A | 3.3A |
Form Factor | Waterproof Switching Power Supplies | ||
AC Inlet/Plug | Open end |
222*69*43MM
Our application is very extensive,such as Household,Appliances,Beauty Devices,Mobile Devices,Set-top-box,POS Machine,CCTV,LED,Networking Devices…
