SMPS vs PSU: Which is Better for Your Power Needs?

If you're confused about choosing between SMPS and traditional PSU for your electronics, you're not alone. Many buyers struggle with this decision, especially when reliability and efficiency matter most.

SMPS (Switch Mode Power Supply) is generally better than traditional PSU (Power Supply Unit) for most applications due to higher efficiency (80-95%), smaller size, and lighter weight. However, linear PSUs may be preferred in some audio applications where electrical noise is critical.

I've helped over 1,000 businesses choose power supplies, and the SMPS vs PSU question comes up frequently. Here's what 13 years in power supply manufacturing has taught me about making the right choice.

## What Exactly is an SMPS?

SMPS units seem complex, but their working principle is simple once you understand it. The key difference lies in how they convert and regulate power.

**An SMPS (Switch Mode Power Supply) rapidly switches between on/off states to regulate output voltage, achieving 80-95% efficiency. It transforms AC to DC through high-frequency switching rather than linear voltage reduction like traditional PSUs.**

SMPS technology operates through these key stages:

1. **Input Stage**

   - Rectification (AC to DC conversion)

   - High-frequency switching (typically 50-70kHz)

2. **Transformation Stage**

   - Smaller ferrite core transformers

   - Voltage step-down/step-up

3. **Output Stage**

   - Filtering for smooth DC output

   - Voltage regulation

Key advantages over linear PSUs:

- **Size:** SMPS can be 60-70% smaller for same power rating

- **Weight:** Typically 50% lighter due to smaller components

- **Heat Generation:** Far less energy wasted as heat

- **Input Voltage Range:** Can handle wider input variations (90-264VAC)

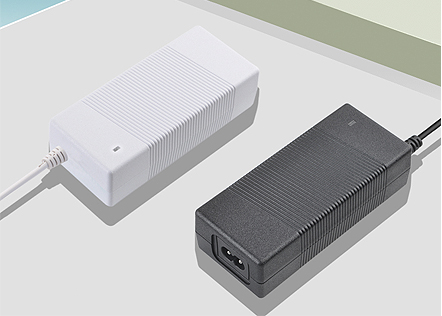

Example: Our 12V SMPS adapter (100W) measures just 3×5×1.5 inches, weighs 0.5kg, and maintains 90% efficiency across voltage fluctuations - features impossible with traditional linear PSUs.

## How Does a Traditional PSU Work?

Many people still prefer traditional PSUs for certain applications, despite their limitations. Understanding how they work helps explain why.

**Traditional linear PSUs work by reducing input voltage through resistive dissipation, typically achieving only 40-60% efficiency. They're simpler in design but generate more heat and require larger components than SMPS units.

Linear PSUs operate through a straightforward process:

1. **Step-down Transformer**

   - Bulky iron core

   - Reduces AC voltage

2. **Rectification**

   - Converts AC to pulsating DC

3. **Filtering**

   - Large capacitors smooth the output

4. **Voltage Regulation**

   - Excess voltage dissipated as heat

Audio engineers often prefer linear PSUs for recording equipment because they produce virtually no electrical noise. However, for most industrial and commercial applications, SMPS clearly outperforms.

## When Should You Choose SMPS Over PSU?

Choosing the right power supply isn't always straightforward. The best option depends on your specific requirements and application environment.

**Choose SMPS for applications requiring high efficiency, compact size, or wide input voltage range. Opt for linear PSU only when ultra-low electrical noise is critical, such as in high-end audio applications or sensitive laboratory equipment.**

Decision guide for common applications:

Key considerations when choosing SMPS:

- Look for 80 PLUS certification for verified efficiency

- Choose IP65-rated units for harsh environments

- Verify surge protection capability

- Check operating temperature range matches your needs

For our commercial clients in Europe, we typically recommend SMPS for 95% of applications. Only specialized cases like broadcast studios might require linear PSU alternatives.

## Conclusion

SMPS surpasses traditional PSU in most modern applications due to superior efficiency, compact size, and better heat management. However, linear PSUs retain niche uses where electrical noise must be minimized.

If you still have some other questions, you can contact with us (peter@cnsuperpowers.com)to enjoy professinal service and cost-saving solutions.
